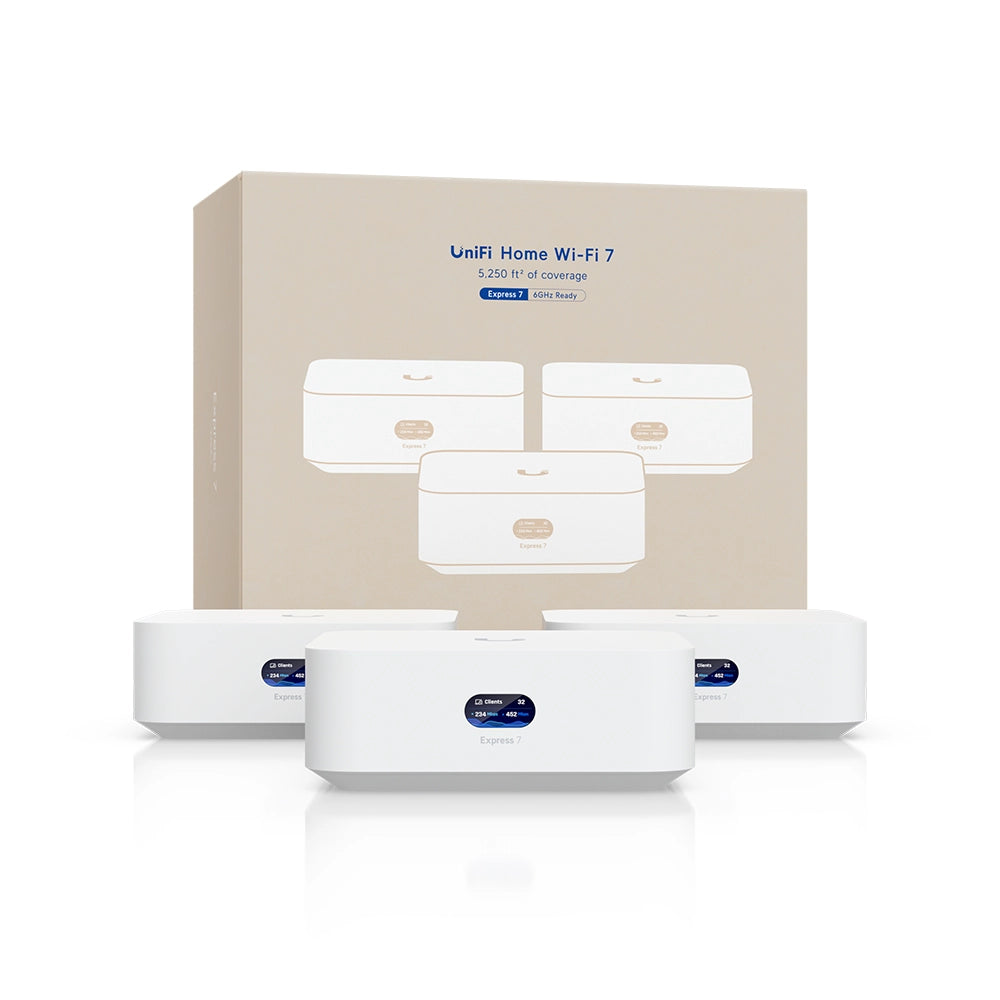

Ubiquiti Whole Home WiFi 3-Pack (UX7-3) – WiFi 7, 10G Cloud Gateway, 6 GHz Mesh & Multi-Link Operation

The Ubiquiti Whole Home WiFi 3-Pack (UX7-3) is a mesh-scalable, super-compact networking solution built around a powerful 10G Cloud Gateway with integrated 6 GHz WiFi 7. Designed for simple whole-home deployment, the system combines plug-and-play installation, intelligent placement guidance, high-speed Multi-Link Operation, and effortless expansion with additional compatible UniFi nodes.

With support for more than 300 simultaneous connected users, management of 30+ UniFi devices, a 10 GbE WAN interface, and advanced security, VPN, SD-WAN, VLAN, routing, and traffic management capabilities, the UX7-3 provides a powerful foundation for modern high-performance home and professional networks.

Key Features and Benefits

• 3-Pack Whole-Home WiFi System: Includes three UX7 units for flexible mesh deployment across larger environments
• WiFi 7 Technology: Supports 802.11be with integrated 2.4 GHz, 5 GHz, and 6 GHz wireless connectivity
• 6 GHz Wireless Performance: Delivers throughput of up to 5.7 Gbps on the 6 GHz band

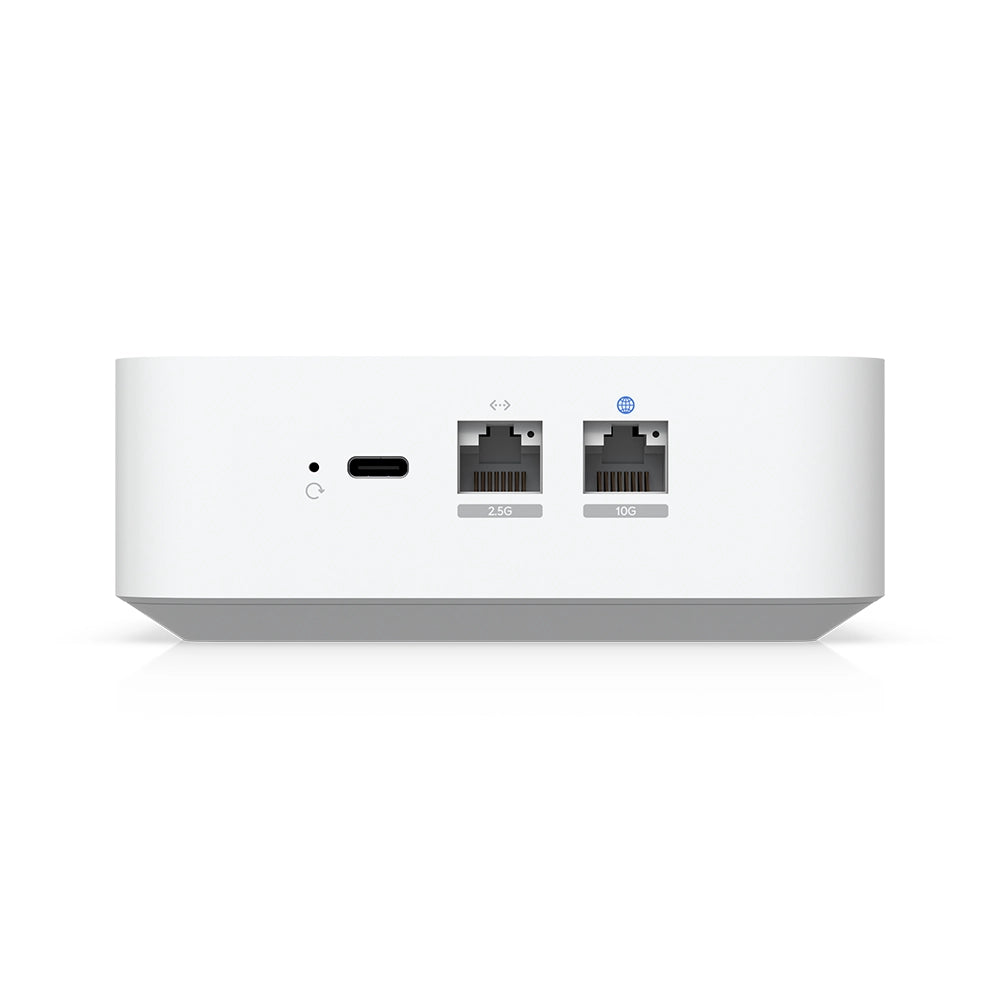

• 10 Gigabit Ethernet: Features a 10 GbE RJ45 interface supporting 10G, 5G, 2.5G, 1G, and 100M speeds
• 2.5 Gigabit Ethernet: Includes an additional 2.5 GbE RJ45 interface for high-speed wired connectivity
• Multi-Link Operation: Designed to take advantage of WiFi 7 Multi-Link Operation for advanced wireless connectivity
• Mesh-Scalable Design: Expand the network easily with additional compatible UniFi nodes
• Intelligent Placement Guidance: Helps simplify node positioning for efficient whole-home wireless deployment
• Integrated Cloud Gateway: Combines routing, security, UniFi Network management, and wireless functionality in one compact platform
• 300+ Simultaneous Users: Designed to support dense networks with hundreds of connected devices
• 30+ Managed UniFi Devices: Provides centralized management for supported UniFi network devices
• Advanced Security: Includes Layer 7 firewalling, DPI, IPS/IDS, content filtering, ad blocking, and network segmentation
• License-Free SD-WAN: Supports Site Magic and multiple VPN technologies without additional SD-WAN licensing

Gateway and Network Performance

• Managed UniFi Devices: 30+
• Simultaneous Connected Users: 300+
• Maximum WAN Port Count: 1
• Default WAN Port: (1) 10 GbE RJ45
• IDS/IPS Throughput: 2.3 Gbps
• Dynamic Routing: OSPF
• Advanced QoS: Supported
• Policy-Based Routing: WAN and VPN routing support
• IPv6 ISP Support: Yes
• Internet Failover: Supports UniFi LTE Backup

Integrated WiFi Performance

Security Features

• Stateful Firewall: Supported
• Application-Aware Layer 7 Firewall: Supported
• DPI and Traffic Identification: Supported
• Zone-Based Firewall: Advanced filtering by regions, domains, and applications
• Content Filtering: Supported
• Intrusion Prevention: IPS/IDS supported
• Ad Blocking: Supported
• IDS/IPS Signatures: 20,000+ with CyberSecure
• Traffic Segmentation: VLAN and subnet-based segmentation

VPN and SD-WAN

• License-Free SD-WAN: Supported
• Site Magic: Site-to-site VPN support
• IPsec: Supported
• OpenVPN Site-to-Site: Supported
• Identity Endpoint One-Click VPN: Supported
• Teleport Zero-Configuration VPN: Supported
• WireGuard VPN Server: Supported
• OpenVPN Server: Supported
• L2TP Server: Supported
• OpenVPN Client: Supported
• WireGuard Client: Supported

Networking Features

• OSPF Dynamic Routing
• Advanced QoS
• Multicast DNS (mDNS)
• Advanced NAT with SNAT, DNAT, Masquerade, NAT Pooling, and 1-to-1 NAT
• Integrated RADIUS Server
• RADIUS over TLS (RadSec)
• UniFi LTE Backup Support
• Internet Quality and Outage Reporting
• Policy-Based WAN and VPN Routing
• Customizable DHCP Server
• IPv6 ISP Support
• IGMP Proxy
• Virtual Network Override
• 802.1Q VLAN Support
• Guest Traffic Isolation

Technical Specifications

Supported WiFi Data Rates

• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Software and Management

• UniFi Application Suite: Network
• VLAN: 802.1Q
• Guest Traffic Isolation: Supported
• Application Requirement: UniFi Network Version 9.0.108 or later
• Management: Ethernet and Bluetooth

The Ubiquiti Whole Home WiFi 3-Pack (UX7-3) combines three compact WiFi 7 nodes with 6 GHz connectivity, 10 Gigabit Ethernet, advanced UniFi routing, enterprise-grade security, VPN and SD-WAN functionality, and scalable mesh networking. Designed for simple deployment and centralized UniFi management, it provides a flexible networking platform for demanding homes, offices, and other environments requiring fast wired and wireless connectivity.
