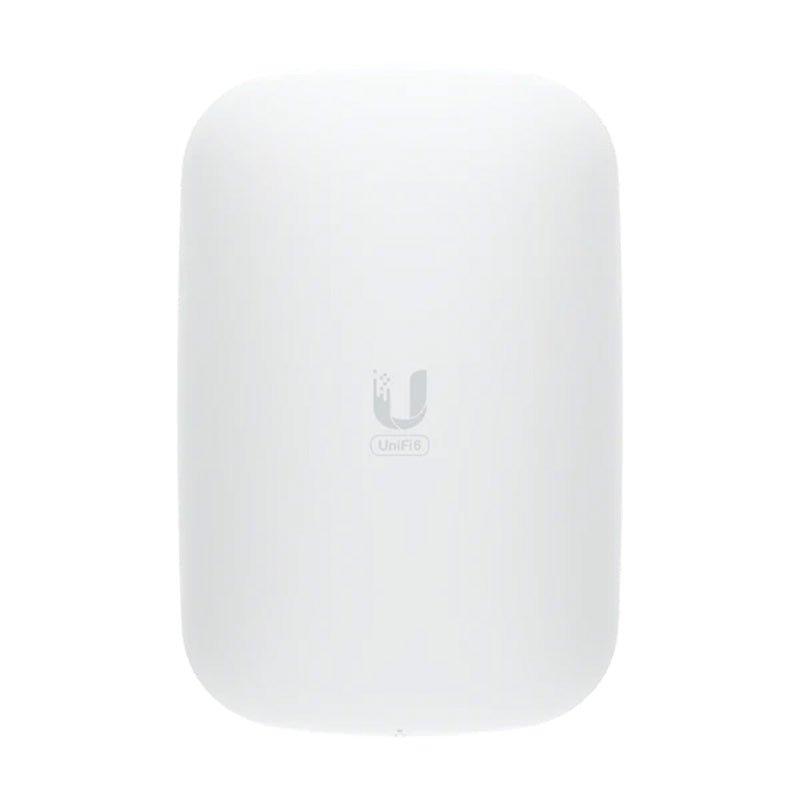

Expand your wireless network effortlessly with the Ubiquiti UniFi6 Extender (U6-Extender-US), an easy-to-deploy WiFi 6 coverage extender that plugs into a standard wall outlet. Offering 6 spatial streams and a 115 m² (1,250 ft²) coverage area, this polycarbonate device delivers up to 4.8 Gbps on 5 GHz, supporting over 300 clients with advanced enterprise features.
Specification | Details |
---|---|
Model | U6-Extender-US |
Dimensions (US) | 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") |
Dimensions (EU) | 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1") |
Weight (US) | 290 g (10.2 oz) |
Weight (EU) | 340 g (12 oz) |
Enclosure Material | Polycarbonate |
WiFi Standard | WiFi 6 |
Spatial Streams | 6 |
Coverage Area | 115 m² (1,250 ft²) |
Max. Client Count | 300+ |
Mounting Locations | Wall |
Mounting Plate | Wall power socket |
Power Method | Universal AC input, 100-240V AC, 0.3A Max., 50/60 Hz |
Max. Power Consumption | 11W |
Supported Voltage Range | 110—240V AC |
Management Interface | Bluetooth |
LEDs (System) | White/Blue |
MIMO (5 GHz) | 4 x 4 (DL/UL MU-MIMO) |
MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
Max. Data Rate (5 GHz) | 4.8 Gbps (BW160) |
Max. Data Rate (2.4 GHz) | 573.5 Mbps (BW40) |
Antenna Gain (5 GHz) | 6 dBi |
Antenna Gain (2.4 GHz) | 5 dBi |
Max. TX Power (5 GHz) | 26 dBm |
Max. TX Power (2.4 GHz) | 22 dBm |
Max. BSSIDs | 8 per Radio |
Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
Supported Data Rates (802.11ax) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Supported Data Rates (802.11ac) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
Supported Data Rates (802.11n) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Wireless Meshing | Yes |
Band Steering | Yes |
802.11v BSS Transition Management | Yes |
802.11r Fast Roaming | Yes |
802.11k Radio Resource Management (RRM) | Yes |
Advanced Radio Management | Yes |
Passpoint (Hotspot 2.0) | Yes |
Captive Hotspot Portal (Custom Branding Landing Page) | Yes |
Voucher Authentication | Yes |
Payment-Based Authentication | Yes |
External Portal Server Support | Yes |
Password Authentication | Yes |
Guest Network Isolation | Yes |
Private Pre-Shared Key (PPSK) | Yes |
WiFi Speed Limiting | Yes |
Client Device Isolation | Yes |
WiFi Schedules | Yes |
RADIUS over TLS (RadSec) | Yes |
Dynamic RADIUS-assigned VLAN | Yes |
Operating Frequency (US/CA) | 2400 - 2472 MHz; U-NII-1: 5150 - 5250 MHz; U-NII-2A: 5250 - 5350 MHz; U-NII-2C: 5470 - 5725 MHz; U-NII-3: 5725 - 5850 MHz |
Operating Frequency (Worldwide) | 2400 - 2483.5 MHz; 5150 - 5725 MHz |
Ambient Operating Temperature | -10 to 50° C (14 to 122° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
