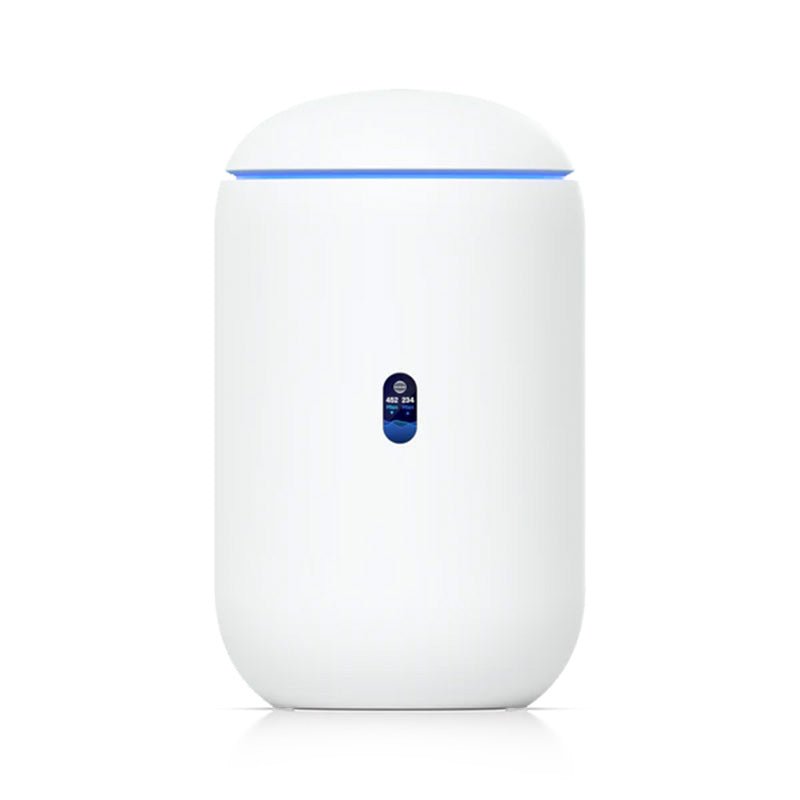

Ubiquiti - UniFi Dream Router (UDR-US)

Desktop UniFi Cloud Gateway with an integrated WiFi 6 access point and PoE switch. Built-in WiFi 6 (4x4 MIMO) Supports two UniFi applications for device management* Integrated 4-port switch with...
Read More
$279.99
$279.99
Subtotal: $279.99
Please hurry! Only 10 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti - UniFi Dream Router (UDR-US)

Ubiquiti - UniFi Dream Router (UDR-US)

$279.99

Ubiquiti - UniFi Dream Router (UDR-US)

$279.99
Desktop UniFi Cloud Gateway with an integrated WiFi 6 access point and PoE switch.

Built-in WiFi 6 (4x4 MIMO)

Supports two UniFi applications for device management*

Integrated 4-port switch with (2) PoE ports

(1) GbE RJ45 WAN port**

128 GB SSD & microSD card slot for NVR***

*Consists of UniFi Network plus a choice of Protect, Access, Talk, or Connect.

**Internet speeds up to 700 Mbps.

***microSD card must have at least 128 GB of storage.



Technical Specifications UDR-US

Mechanical
Dimensions Ø110 x 184.1 mm (Ø4.33 x 7.3")
Weight 1.2 kg (2.5 lb)
Enclosure material Polycarbonate
Hardware
Processor Dual-core Arm® Cortex® A53 at 1.35 GHz
System memory 2 GB
Expansion slot Micro SD memory card* (Optional)
*Requires a memory card with at least 128 GB of storage.
Management interface Ethernet
Bluetooth
Networking interface (4) LAN: GbE RJ45 ports
(1) WAN: GbE RJ45 port
PoE interface (2) PoE
Power method Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz
Power supply AC/DC, internal, 50W
Supported voltage range 100—240V DC
Max. power consumption 19.37W (Excluding PoE output)
PoE budget 40W
Max. PoE wattage per port by PSE 15.4W
Voltage range PoE mode 44—57V DC
Max. TX power
2.4 GHz
5 GHz

26 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

4 x 4
4 x 4
Throughput rate
2.4 GHz
5 GHz

600 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

3.4 dBi
4.3 dBi
Antenna (1) Internal, dual-band, quad-polarity antenna
LCM display (1) 0.96" screen
Button Factory reset
LEDs White/blue
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
