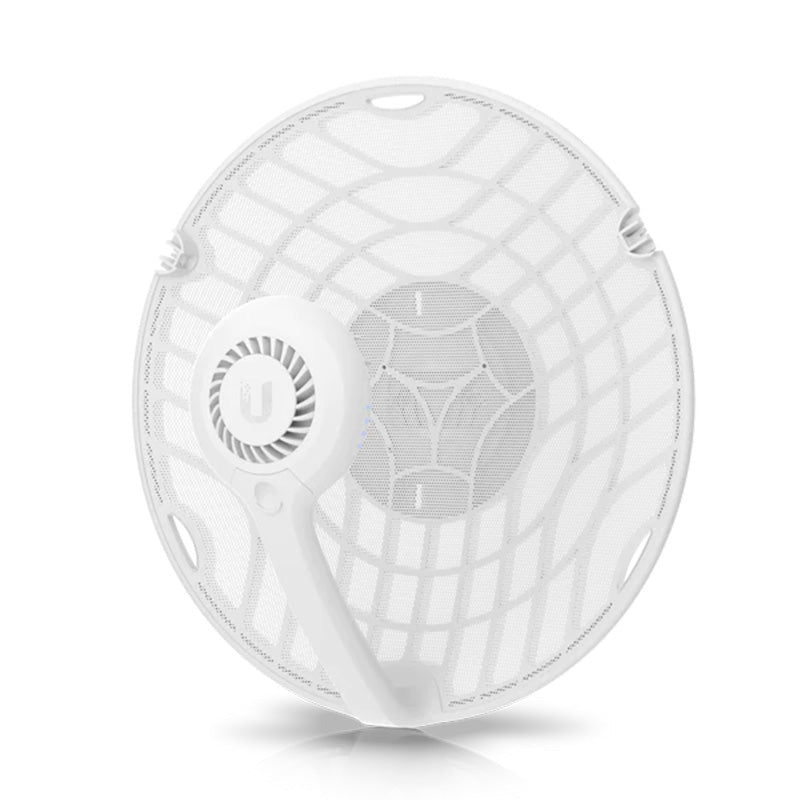

Long-range 60 GHz PtP radio system powered by Wave Technology.
The airFiber 60 LR uses Wave Technology to establish links over 12 km and can reach a 1.9 Gbps maximum throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.
|Dimensions||Ø413 x 360 mm (Ø16.3 x 14.2")|
|Weight||Without mount: 1.5 kg (3.3 lb)
With mount: 2.7 kg (6 lb)
|Enclosure materials||Aluminum, UV stabilized polycarbonate|
|Mount material||Galvanized steel|
|Mounting||Precision alignment kit (included)
Pole compatibility: Ø25.4-76.2 mm (Ø1-3")
|Wind loading||420 N at 200 km/h (94.4 lbf at 125 mph)|
|Processor||Quad-Core ARM® Cortex® A7|
|Memory||256 MB DDR3|
|Networking interface||(1) GbE RJ45 port|
|Max. Power Consumption||18W|
|Power method||Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )|
|Power supply||48VDC, 0.65A gigabit PoE adapter (included)|
|Supported Voltage Range||48VDC ± 10%|
|ESD/EMP Protection||Air/Contact: ± 24kV|
|Operating Temperature||-40 to 60° C (-40 to 140° F)|
|Operating Humidity||5 to 95% noncondensing|
|Certifications||FCC, IC, CE|
|Power||Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
|Ethernet||Flashing blue: Ethernet activity|
|GPS||Blue: receiving at least (4) GPS satellite signals|
|60G||Blue: active connection|
|Operating mode||PtP only|
|Ubiquiti specific features||Wave technology, discovery utility|
|Services||UISP, ping watchdog, NTP client|
|Tools||Antenna alignment, discovery utility, ping, trace route, speed test|
|Software management||Bluetooth management for easy setup over UISP app
|Minimum software requirements||Any modern WEB browser/iOS or Android based smartphone|
|Maximum throughput||1.95 Gbps|
|Maximum range||12+ km|
|Operating frequency*||57 to 71 Ghz
* Depends on regulatory region.
|Channel bandwidth||2160, 1080 MHz|
