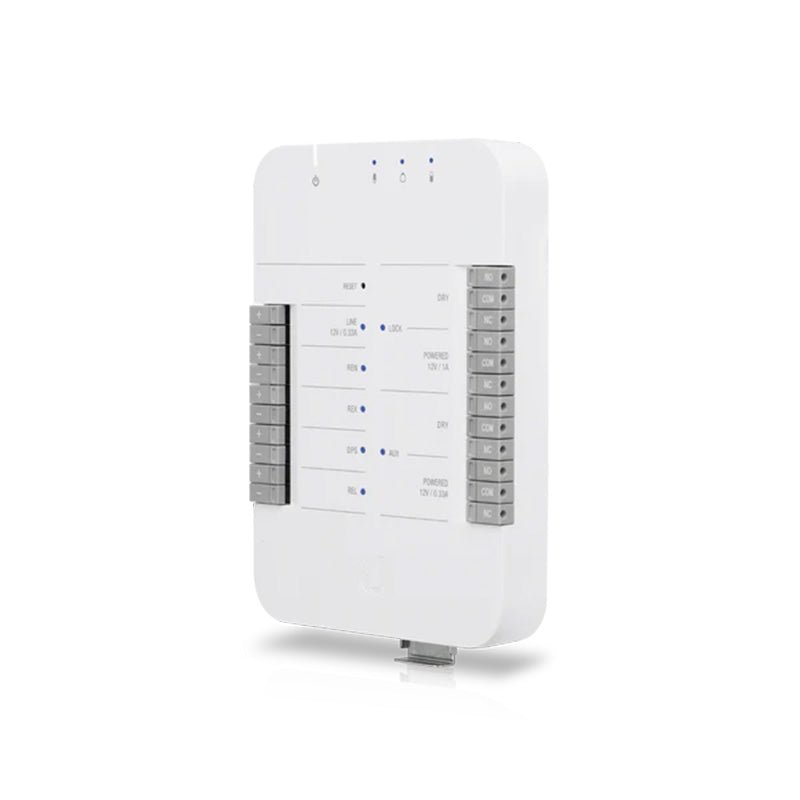

Ubiquiti UniFi Access Hub

Free returns under 90 days

Only available online

Delivery estimated within 20/11 and 29/11

Save 25% Save 25%
Original price $399.99
Original price $399.99 - Original price $399.99
Original price $399.99
Current price $299.99
$299.99 - $299.99
Current price $299.99

The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers.

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

Features:

    • Powered by PoE++ switch
    • (3) PoE ports for UniFi readers and G3 Flex surveillance camera
    • 12V powered and dry relays compatible with most locks
    • Four inputs for motion sensors, request-to-exit devices and door position switch
    • Managed with UniFi Access Application in UDM-Pro
    • DIN-rail mounting
Mechanical
Dimensions 190 x 126 x 33 mm (7.48 x 4.96 x 1.29")
Weight 457 g (16.12 oz)
Enclosure material Plastic Enclosure with Metal Mount Plate
Mounting options DIN rail
Hardware
Networking interface (4) 1GbE
Max. power consumption 40W
Power method PoE++
Input terminals REX - request to exit
REN - request to enter
REL - remote release
DPS - door position sensor
Dry output relay
Lock
Aux

Rated 30VDC, up to 1A
Rated 30VDC, up to 1A
Powered output relay
Lock
Aux
Line

12VDC, up to 1A
12VDC, up to 0.33A
12VDC, up to 0.33A
LEDs (1) System, (3) PoE out, (4) Input
(2) Output Relays, (1) 12VDC Out
Buttons (1) Factory reset
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 - 90% noncondensing
Certifications CE, FCC, IC
