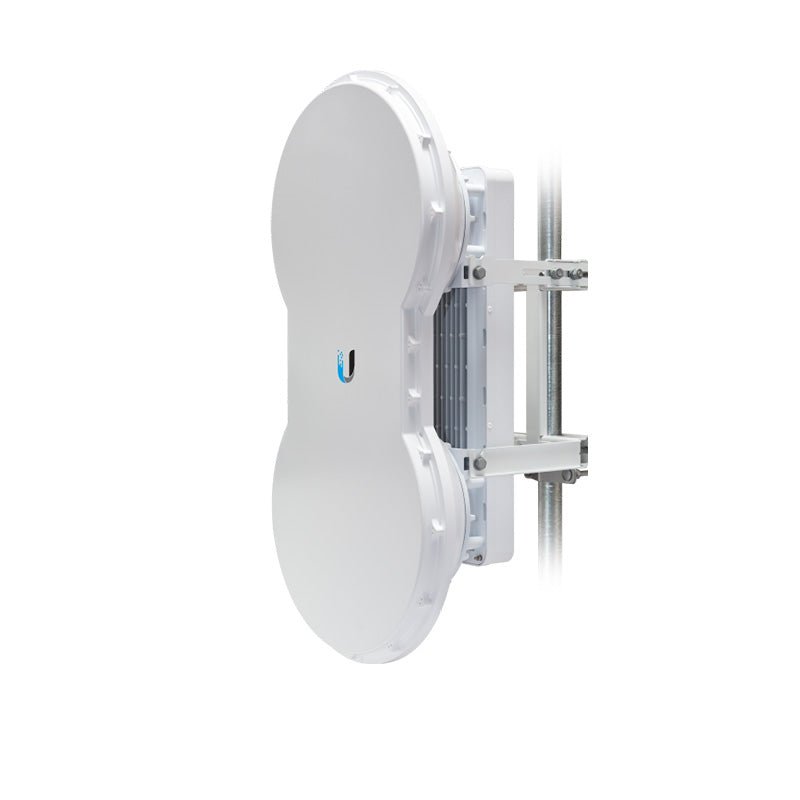

Extend your network reach with the Ubiquiti UISP airFiber 5 Mid-Band Bridge (AF-5), a compact wireless point-to-point solution delivering over 1.2 Gbps throughput. Operating in the 5 GHz mid-band with a range exceeding 100 km, this bridge features separate TX and RX antennas, integrated GPS synchronization, and robust 1+ Mpps processing for high-performance connectivity.
Specification | Details |
---|---|
Model | AF-5 |
Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08") |
Weight | 16 kg (35.27 lb) |
Mounting | Pole mount kit (Included) |
Wind Loading | 863 N @ 200 km/h (194 lbf @ 125 mph) |
Wind Survivability | 200 km/h (125 mph) |
Networking Interface | (1) 10/100/1000 MbE port; (1) 10/100 MbE port |
Auxiliary Port | (1) RJ-12, alignment tone port |
Power Method | Passive PoE |
Power Supply | 50V, 1.2A PoE GigE adapter (Included) |
Supported Voltage Range | +42—58V DC |
Max. Power Consumption | 40 W |
Operating Temperature | -40 to 55°C (-40 to 131° F) |
Certifications | CE, FCC, IC |
Max. Throughput | 1.2+ Gbps |
Max. Range | 100+ km* (*Dependent on regulatory region) |
Packets per Second | 1+ million |
Encryption | 128-Bit AES |
Uplink/Downlink Ratio | 50% Fixed |
Radio Frame Synchronization | GPS |
Operating Frequency (FCC/IC) | 5470 - 5600 MHz, 5650 - 5850 MHz |
Operating Frequency (ETSI) | 5470 - 5875 MHz |
Operating Frequency (Other Regions) | 5470 - 5950 MHz |
GPS | GPS Clock Synchronization |
EIRP | ~50 dBm* (*Dependent on regulatory region and frequency band) |
Frequency Accuracy | ±2.5 ppm without GPS; ±0.2 ppm with GPS |
Channel Bandwidth | 10/20/30/40/50 MHz |
Modulation | 1024QAM MIMO, 256QAM MIMO, 64QAM MIMO, 16QAM MIMO, QPSK MIMO, ½ Rate QPSK xRT, ¼ Rate QPSK xRT |
Gain (TX) | 23 dBi |
Gain (RX) | 23 dBi |
Beamwidth | 6° |
Front-to-Back Ratio | 70 dB |
Polarization | Dual-slant |
Cross-Polarity Isolation | > 28 dB |
