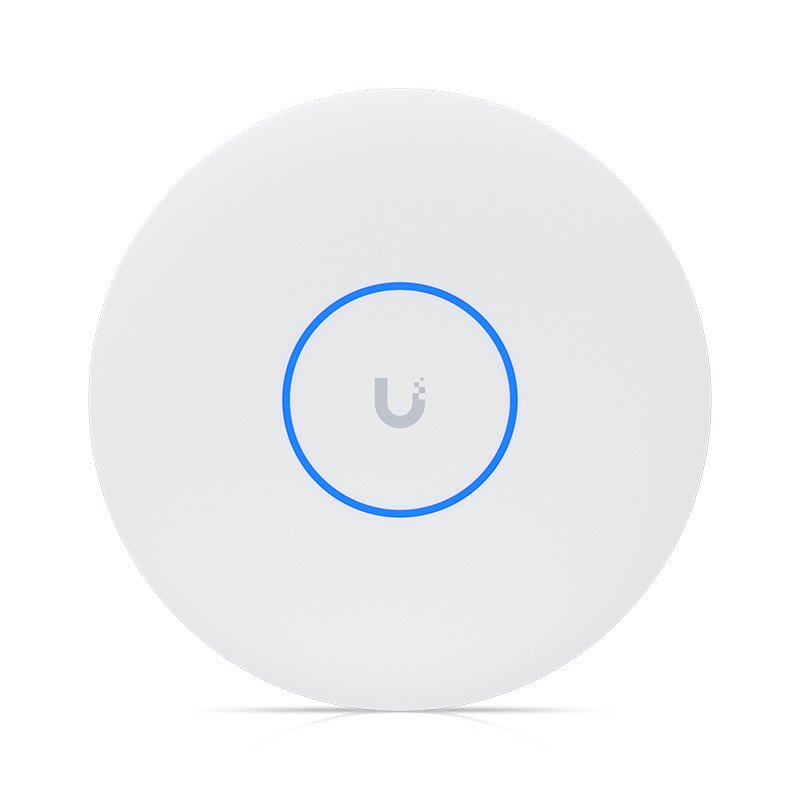

Ubiquiti U7 Pro XG - High-Performance WiFi 7 AP with 10G Uplink

Ceiling-mounted 6-stream WiFi 7 access point with 10/5/2.5/1 GbE support, optimized for high-density environments.

Overview

• Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 10 GbE
• Mounting: Ceiling, Wall (Lite Mount Included)
• Power Method: PoE+

Performance

• MIMO:
• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate:
• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
• 6 GHz: 6 dBi
• 5 GHz: 5 dBi
• 2.4 GHz: 4 dBi
• Max. TX Power:
• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per Radio

Supported Data Rates

• 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

• Wireless Meshing: Yes
• Band Steering: Yes
• 802.11v BSS Transition Management: Yes
• 802.11r Fast Roaming: Yes
• 802.11k Radio Resource Management: Yes
• Advanced Radio Management: Yes
• Passpoint (Hotspot 2.0): Yes
• Captive Hotspot Portal: Yes
• Custom Branding Landing Page: Yes
• Voucher Authentication: Yes
• Payment-Based Authentication: Yes
• External Portal Server Support: Yes
• Password Authentication: Yes
• Guest Network Isolation: Yes

Hardware

• Max. Power Consumption: 22W
• Supported Voltage Range: 42.5—57V DC
• Networking Interface: (1) 10 GbE RJ45 port
• Weight: 750 g (1.7 lb)
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)

Environmental & Compliance

• Certifications: CE, FCC, IC
• Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing

LEDs & System Management

• LED System Indicator: White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
