Ubiquiti SuperLink Gateway (USL-Gateway) – Long-Range Wireless Gateway for UniFi Protect Sensors

The Ubiquiti SuperLink Gateway (USL-Gateway) is a high-performance wireless gateway designed to connect and manage UniFi Protect Sensors over ultra-long distances. Utilizing Ubiquiti’s proprietary SuperLink technology, it delivers reliable, low-latency communication with extended range—making it ideal for large-scale deployments, warehouses, campuses, and industrial environments.

With support for both SuperLink and Bluetooth connectivity, flexible mounting options, and PoE power, the USL-Gateway ensures seamless integration into modern UniFi ecosystems while maintaining efficient and scalable sensor communication.

Key Features

• Super Long-Range Connectivity: Up to 2 km (1.2 miles) communication range via SuperLink
• Low-Latency Performance: Reliable and responsive sensor data transmission
• Dual Wireless Support: SuperLink proprietary protocol + Bluetooth 5.2
• High Device Capacity: Supports up to 96 SuperLink devices
• Seamless UniFi Integration: Fully compatible with UniFi Protect ecosystem
• Flexible Mounting: Wall and DIN rail mounting options included
• Compact & Durable Design: Polycarbonate and aluminum alloy enclosure
• PoE Powered: Simplified installation with Power over Ethernet

Connectivity & Performance

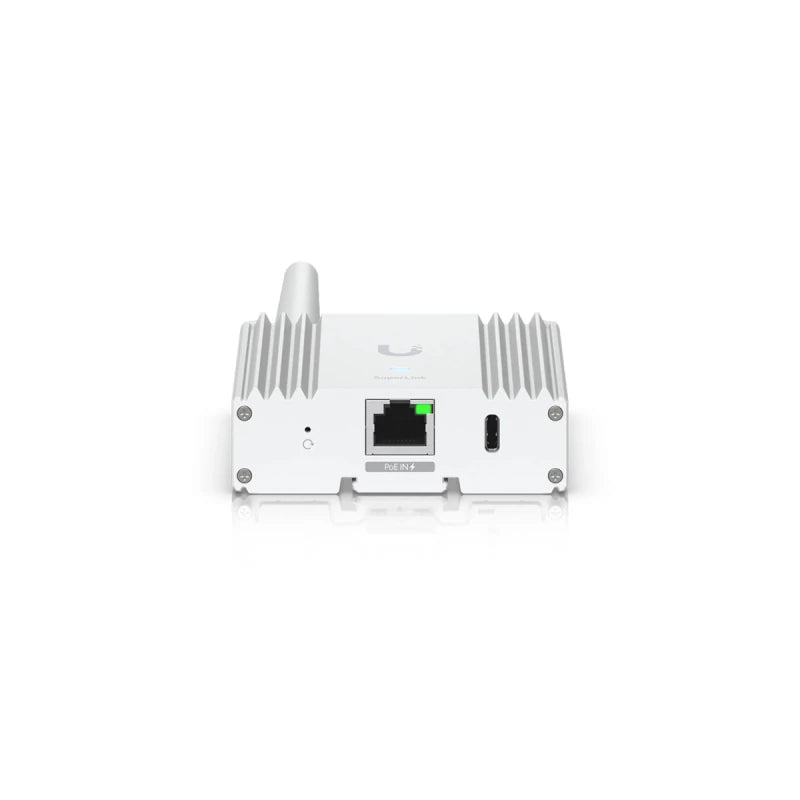

• Networking Interface: (1) 10/100 MbE RJ45 port
• Bluetooth Range: Up to 100 m (328 ft)
• SuperLink Range: Up to 2 km (1.2 mi)
• Operating Frequencies:
  • Bluetooth: 2400–2480 MHz
  • SuperLink (US): 915.6–927.6 MHz
  • SuperLink (EU): 865.1–869.5 MHz
• Max TX Power: 27 dBm (SuperLink)
• Max Client Count: 96 (SuperLink), 7 (Bluetooth)

Installation & Hardware

• Power Method: PoE or USB Type-C (5V, 1A optional)
• Low Power Consumption: Max 3.4W
• Mounting Options: Wall mount and DIN rail mount
• Build Quality: Polycarbonate and aluminum alloy enclosure
• Status Indicators: LED status indicator
• Reset Button: Factory reset button included

Technical Specifications

The Ubiquiti SuperLink Gateway is a powerful and scalable solution for extending the reach of UniFi Protect sensors, delivering reliable long-range communication and seamless integration into professional monitoring systems.
