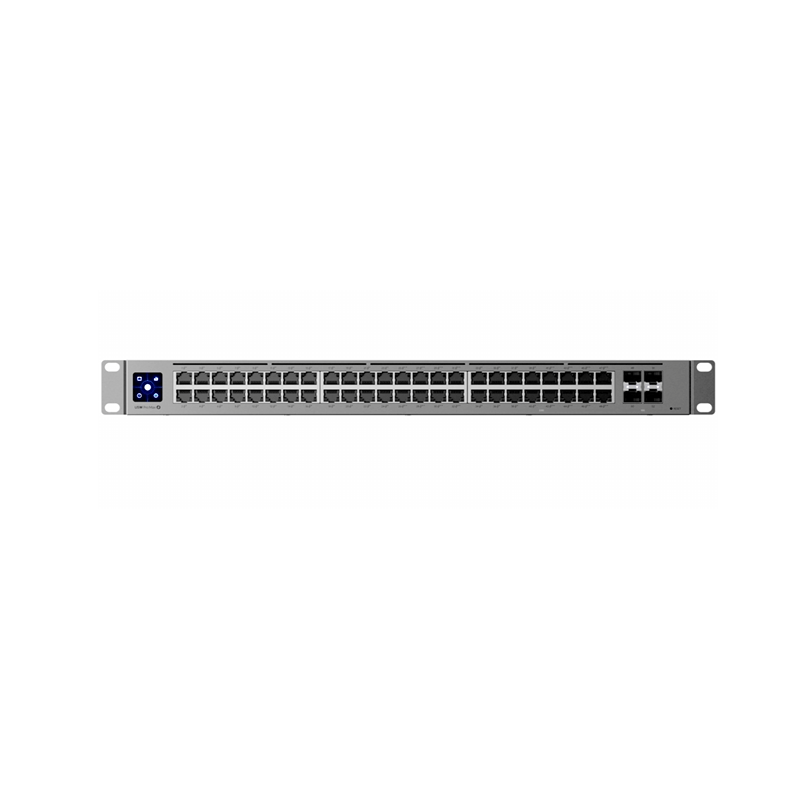

Supercharge your network with the Ubiquiti Pro Max 48 PoE Switch (USW-Pro-Max-48-PoE), a 48-port, Layer 3 Etherlighting™ switch designed for high-speed and high-power applications. With 16 2.5 GbE ports (including PoE+ and PoE++), 32 GbE ports (with PoE+ and PoE++), 4 10G SFP+ ports, and a massive 720W PoE budget, this switch delivers exceptional performance and versatility for enterprise-grade deployments.
Specification | Details |
---|---|
Model | USW-Pro-Max-48-PoE |
Dimensions | 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7") |
Weight (Without Mounting Brackets) | 6.2 kg (13.7 lb) |
Weight (With Mounting Brackets) | 6.3 kg (13.9 lb) |
Enclosure Material | SGCC steel |
Management Interface | Ethernet In-Band |
Networking Interface | (32) GbE RJ45 ports (24 PoE+, 8 PoE++); (16) 1/2.5 GbE RJ45 ports (8 PoE+, 8 PoE++); (4) 10G SFP+ ports |
PoE Interface | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-); (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total Non-Blocking Throughput | 112 Gbps |
Switching Capacity | 224 Gbps |
Power Method | Universal input, 100—240V AC, 50/60 Hz; USP RPS DC input |
Power Supply | AC/DC, internal, 820W |
Supported Voltage Range | 100—240V AC |
Max. Power Consumption | 100W (Excluding PoE output) |
Total Available PoE | 720W |
Max. PoE Wattage per Port by PSE | PoE: 15.4W; PoE+: 30W; PoE++: 60W |
Voltage Range PoE Mode | PoE: 44—57V; PoE+: 50—57V |
LCM Display | (1) 1.3" touchscreen |
Button | Factory reset |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Etherlighting™ (Ethernet) | Locating; Speed/link; Native VLAN/network |
Etherlighting™ (SFP+) | Locating; Speed/link; Native VLAN/network |
LEDs (System) | Status |
LEDs (RPS) | Status |
Application Requirements | UniFi Network: Version 8.0.24 and later |
