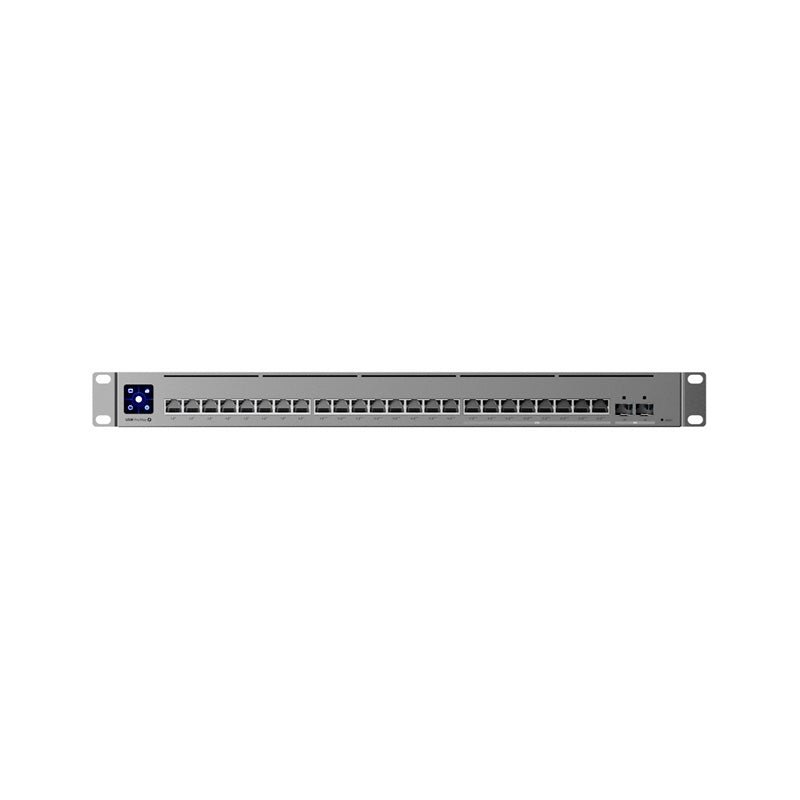

Ubiquiti Pro Max 24 PoE USW-Pro-Max-24-PoE (400W)

Technical Specifications Mechanical Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") Weight Without mounting brackets: 5.1 kg (11.3 lb)With mounting brackets: 5.2 kg (11.5 lb) Enclosure...
Read More
$949.99
$949.99
Subtotal: $949.99
Please hurry! Only 6 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti Pro Max 24 PoE USW-Pro-Max-24-PoE (400W)

Ubiquiti Pro Max 24 PoE USW-Pro-Max-24-PoE (400W)

$949.99

Ubiquiti Pro Max 24 PoE USW-Pro-Max-24-PoE (400W)

$949.99
Technical Specifications

Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
