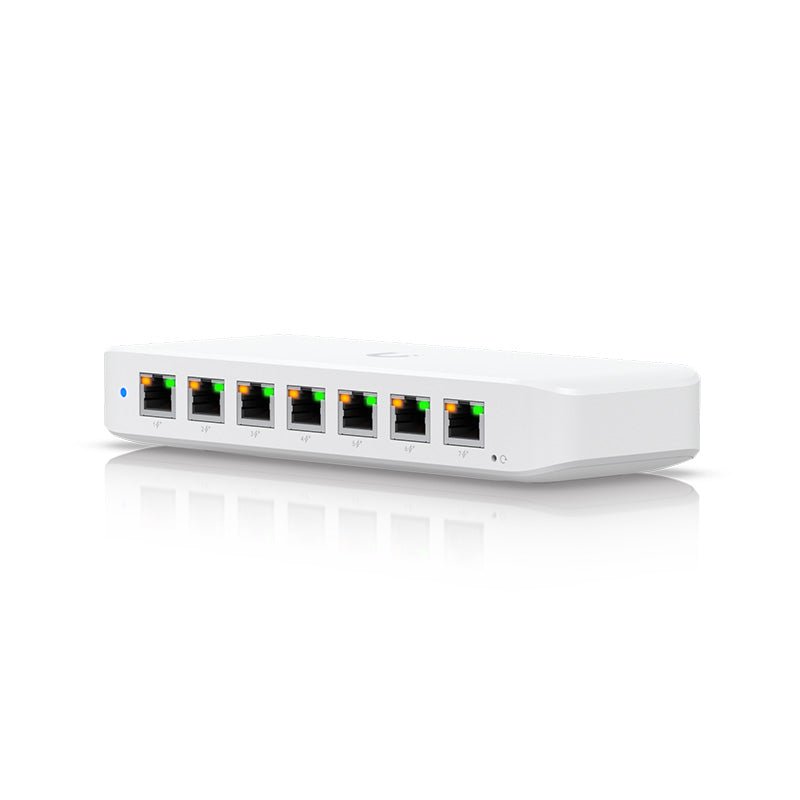

Power your network efficiently with the Ubiquiti Networks Ultra 210W (USW-Ultra-210W), a compact, Layer 2, 8-port GbE PoE switch designed for versatility. Featuring 7 GbE PoE+ output ports, a flexible PoE++ input port, and a robust 202W PoE budget with the included 210W AC adapter, this switch offers seamless performance and multiple mounting options for any setup.
Specification | Details |
---|---|
Model | USW-Ultra-210W |
Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
Weight (Device) | 320 g (11.3 oz) |
Weight (Wall Mount) | 45 g (1.6 oz) |
Weight (210W Adapter) | 770 g (1.7 lb) |
Enclosure Material | Polycarbonate |
Management Interface | Ethernet In-Band |
Networking Interface | (8) GbE RJ45 ports |
PoE Interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-); (1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total Non-Blocking Throughput | 8 Gbps |
Switching Capacity | 16 Gbps |
Power Method | (1) 54V, 3.9A power adapter (Included); PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
Power Supply | 54V, external, 1.1A/60W |
Supported Voltage Range | 44—57V DC |
Max. Power Consumption | 9W with PoE input (Excluding PoE output); 8W with AC adapter input (Excluding PoE output) |
Total Available PoE | PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: 202W* (Reduced to 161W at 230V or 121W at 115V at 60° C) |
Max. PoE+ Wattage per Port by PSE | 30W |
Button | Factory reset |
Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F); 60W AC adapter input: -20 to 45° C (-4 to 113° F); 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
Operating Humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
LEDs (System) | Status |
LEDs (Ethernet) | PoE; Link/activity |
Application Requirements | UniFi Network: Version 8.0.7 and later |
