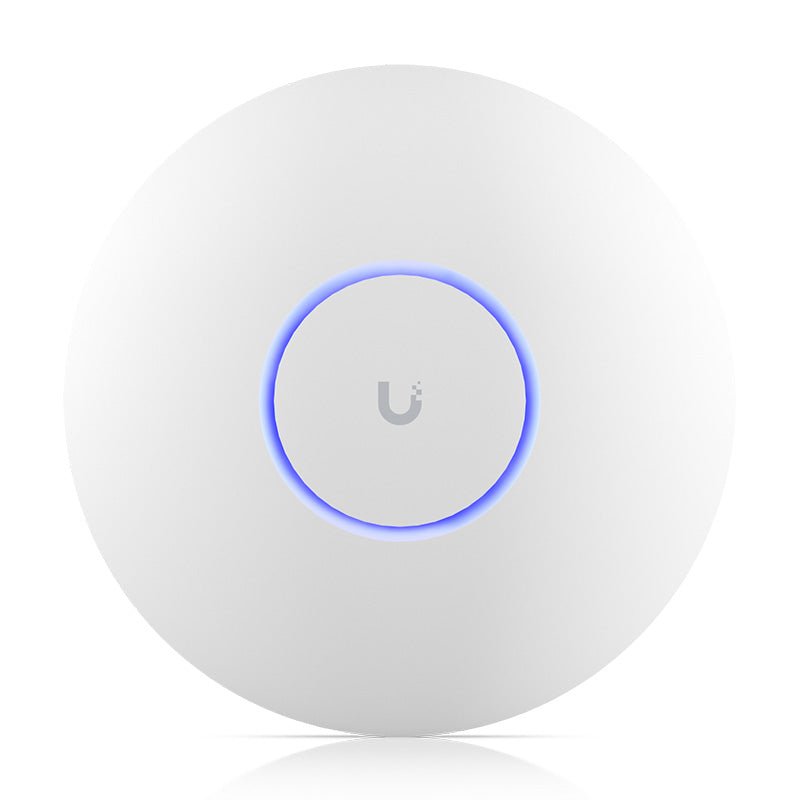

Experience cutting-edge wireless performance with the Ubiquiti Networks U7 Pro Max (U7-Pro-Max), a ceiling-mounted WiFi 7 access point designed for demanding, large-scale environments. Featuring 8 spatial streams, 6 GHz support, real-time spectral scanning for interference-free operation, and 160 m² (1,750 ft²) coverage, it supports over 500 devices with a 2.5 GbE uplink and PoE+ power.
Specification | Details |
---|---|
Model | U7-Pro-Max |
Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") |
Weight | 680 g (1.5 lb) |
Enclosure Material | Polycarbonate, aluminum |
Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
Networking Interface | (1) 1/2.5 GbE RJ45 port |
Management Interface | Ethernet |
Power Method | PoE+ |
Power Supply | UniFi PoE switch |
Supported Voltage Range | 44—57V DC |
Max. Power Consumption | 22W |
Max. TX Power (2.4 GHz) | 23 dBm |
Max. TX Power (5 GHz) | 29 dBm |
Max. TX Power (6 GHz) | 23 dBm |
MIMO (2.4 GHz) | 2 x 2 |
MIMO (5 GHz) | 4 x 4 |
MIMO (6 GHz) | 2 x 2 |
Throughput Rate (2.4 GHz) | 688 Mbps |
Throughput Rate (5 GHz) | 8648 Mbps |
Throughput Rate (6 GHz) | 5765 Mbps |
Antenna Gain (2.4 GHz) | 4 dBi |
Antenna Gain (5 GHz) | 6 dBi |
Antenna Gain (6 GHz) | 5.9 dBi |
LEDs | White/blue |
Button | Factory reset |
Mounting | Wall, ceiling (Included) |
Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
WiFi Standards | 802.11a/b/g/n/ac/ax/be |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest Traffic Isolation | Supported |
Concurrent Clients | 500+ |
Supported Data Rates | 802.11a: 6-54 Mbps; 802.11b: 1-11 Mbps; 802.11g: 6-54 Mbps; 802.11n: 6.5-300 Mbps (MCS0-MCS15, HT 20/40); 802.11ac: 6.5-1.7 Gbps (MCS0-MCS9 NSS1/2, VHT 20/40/80/160); 802.11ax: 7.3-4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160); 802.11be (5 GHz): 7.3-8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240); 802.11be (6 GHz): 7.3-5.7 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
Application Requirements | UniFi Network: Version 8.2.93 and later |
