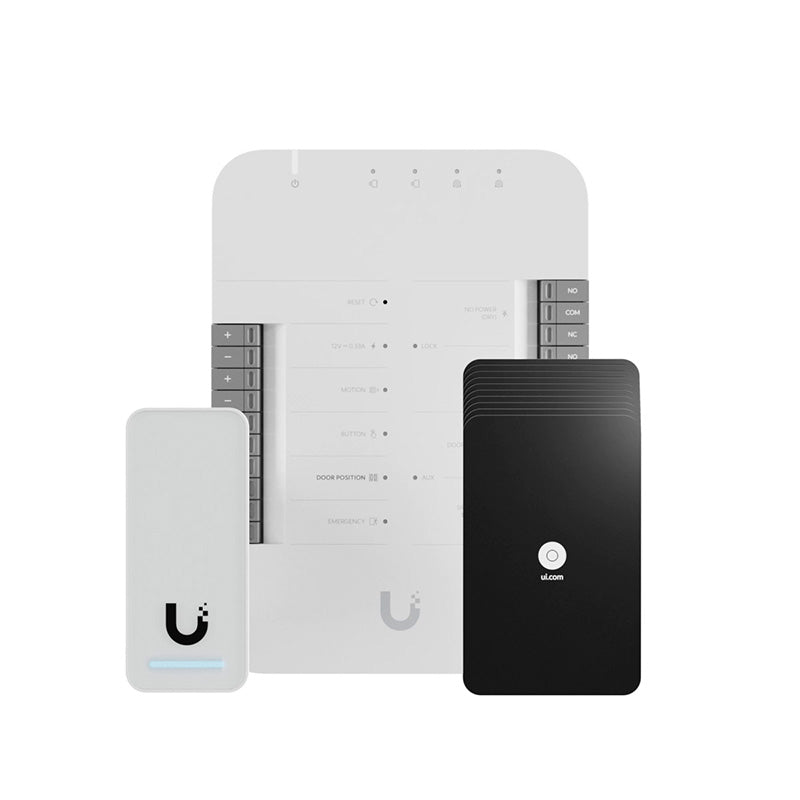

Ubiquiti G2 Starter Kit (UA-G2-SK)

(1) UniFi Access Door Hub (1) Access Reader G2 (10) UniFi Access Cards UA-Hub-DoorMechanical Enclosure material Polycarbonate Mounting material Polycarbonate Weight 363 g (12.8 oz) Dimensions 174.9 x 126 x 32.9 mm...
Read More
$329.99
$0.00
$329.99
Subtotal: $329.99
Please hurry! Only 1 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti G2 Starter Kit (UA-G2-SK)

Ubiquiti G2 Starter Kit (UA-G2-SK)

$0.00 $329.99

Ubiquiti G2 Starter Kit (UA-G2-SK)

$0.00 $329.99

(1) UniFi Access Door Hub

(1) Access Reader G2

(10) UniFi Access Cards

UA-Hub-Door
Mechanical
Enclosure material Polycarbonate
Mounting material Polycarbonate
Weight 363 g (12.8 oz)
Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Hardware
Networking interface (5) 10/100/1000 Base-T



Max. power consumption Without PoE output: 30W
With PoE output: 50W
PoE output PoE passthrough, (4) PoE, 50V DC, total 20W
LEDs System: white/blue
Output relays: white
Digital input Request to exit/request to enter/remote release/door position sensor
Dry output relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Operating environment Indoor use only
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 to 95% noncondensing
Software information The software version of a product can be checked in https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security:  Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Hub-Door002, V01
Power method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU
PoE input 50V DC, 1A
Button (1) Factory-reset
Wiring Information
Typical installation (Shielded)
DC power input Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit Belden 8750 18 AWG 2 (152.5 m/500 ft)
PoE cabling requirements The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.
Wiring gauge requirements (AWG)
Total length to device Output load current at 12V DC
100mA 250mA 500mA 1A
6.1 m (20 ft) 22 22 22 18
15.2 m (50 ft) 22 22 22 18
30.5 m (100 ft) 22 22 18 18
LEDs
PoE in Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
PoE out Off: Not connected or no data link
Steady blue: Connected and data link on
UA-G2
Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -30 to 45° C (-22 to 113° F)
Operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC
UA-Card
Mechanical
Dimensions 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
Weight 5 g (0.18 oz)
Format ISO 7810 ID-1
NFC frequency 13.56 MHz
NFC technology ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol
