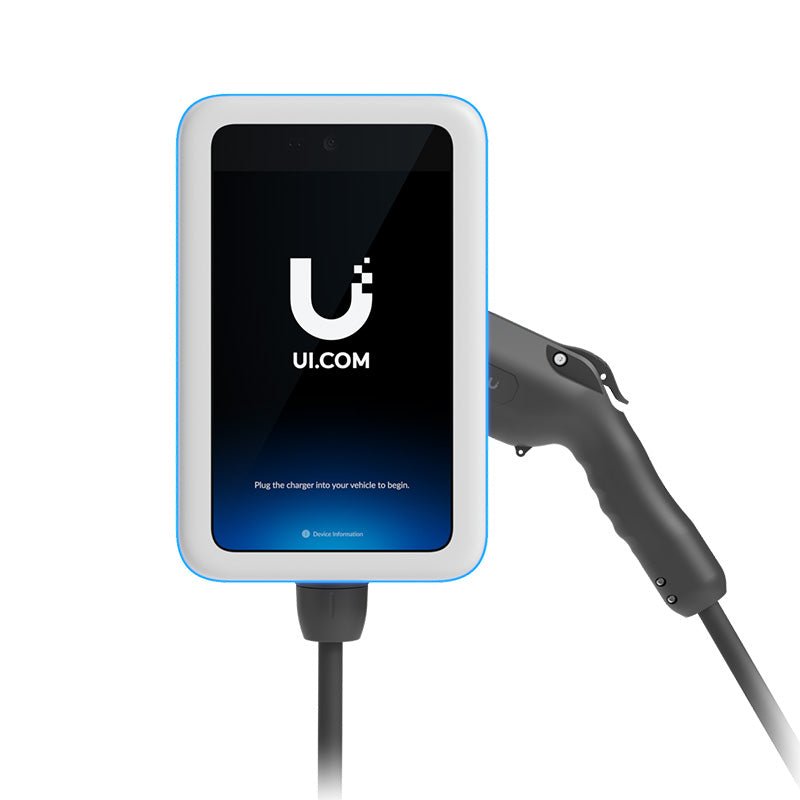

Ubiquiti EV Station Pro (UC-EV-Station-Pro)

Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support. Ultra-bright 10.1" touch display 11 kW max...
Read More
$1,349.99
$1,349.99
Subtotal: $1,349.99
Please hurry! Only 1 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti EV Station Pro (UC-EV-Station-Pro)

Ubiquiti EV Station Pro (UC-EV-Station-Pro)

$1,349.99

Ubiquiti EV Station Pro (UC-EV-Station-Pro)

$1,349.99
Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support.

Ultra-bright 10.1" touch display

11 kW max charging output with SAE J1772 charging plug

Media content playback for digital signage applications

Access control with QR code scanning, UniFi Identity mobile app, and NFC card*

Payment terminal accessory support for payment processing

Hardwire or use one of the included NEMA 14-50 and 6-50 cables for plug-in installation

Connected with UniFi WiFi Auto-Link** or Ethernet

UL certified

Includes wall mount

*UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.
**UniFi WiFi Auto-Link supported with version 1.0.262 and later. Third-party WiFi configuration is not supported.

UC-EV-Station-Pro

Technical Specifications

Mechanical
Dimensions 280 x 178 x 143 mm (11 x 7 x 5.6”)
Weight With wall mount/charging gun/power cord: 8.1 kg (17.9 lb)
Enclosure material Front modules: plastic
Middle module: aluminum, plastic
Mount material Plastic
Charging cable length 7 m (23 ft)
Weatherproofing Type 3R
Charging outlet SAE J1772
Hardware
Display size 257 mm (10.1") diagonal
Resolution 800 x 1280 (10:16)
Display luminance 800 nits (typical)
Touch screen technology Capacitive multi-touch
Processor Octa-core Arm® Cortex®-A53, 2.2 GHz
Memory Storage: 32GB
RAM: 3GB
Power input 200–240V ~ 50A, 50/60Hz, 1φ
Power output 200–240V ~ 50A, 50/60Hz, 1φ
Circuit breaker for charging output
Circuit rating Max. load Plug-in Hardwired
70A 50A No Yes
60A 48A No Yes
50A 40A Yes Yes
40A 32A Yes Yes
30A 24A Yes Yes
20A 16A Yes Yes


The circuit must be rated for 125% of the maximum load.

Note. The EV Station can be wired to support higher amperages. Please consult your electrician codes for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C, and is compatible with wiring up to 16 mm2 (6 AWG).


Connectivity (1) GbE RJ45 port
(1) USB-C port for payment terminal accessory
Bluetooth® 4.2
Sensors ALS + PS (ambient light sensor + proximity sensor)
Embedded front camera 8 MP
WiFi standards 802.11 a/b/g/n/ac
Mounting Wall mount and stand
Ambient operating temperature -40 to 50° C (-40 to 122° F)
Ambient operating humidity 5 to 90% noncondensing
Certifications FCC, IC, UL
Software
Management application UniFi Connect web: Version 3.2.4 and later
UniFi Connect iOS™ and Android™: Version 2.2.1 and later
