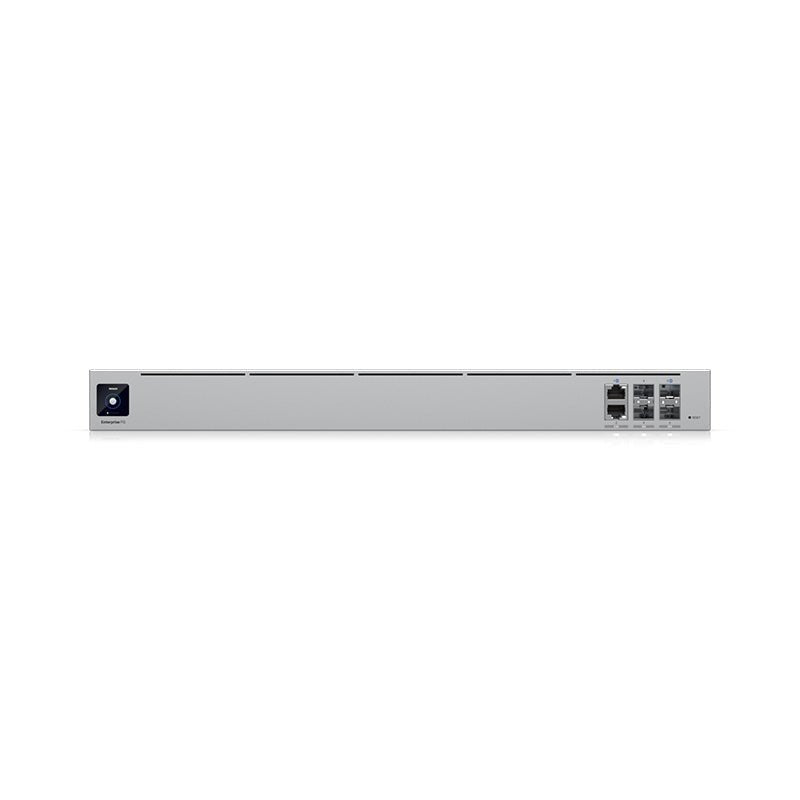

Unleash enterprise-grade networking with the Ubiquiti Enterprise Fortress Gateway (EFG), a 25G Cloud Gateway supporting over 500 UniFi devices and 5,000+ clients. Featuring 12.5 Gbps IPS routing, Shadow Mode High Availability with VRRP failover, and a robust suite of security and routing features, it’s built for massive scale and uninterrupted connectivity.
Specification | Details |
---|---|
Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
Weight | 6.5 kg (14.3 lb) |
Enclosure Material | Aluminium CNC, SGCC steel |
Processor | 18-core ARM® v8.2 at 2 GHz |
System Memory | 16 GB |
Management Interface | Ethernet, Bluetooth |
Networking Interface | (2) 25G SFP28, (2) 10G SFP+, (2) 2.5 GbE RJ45 (two remappable to WAN) |
Default WAN Ports | (1) 25G SFP28, (1) 2.5 GbE RJ45 |
LAN Ports | (1) 25G SFP28, (2) 10G SFP+, (1) 2.5 GbE RJ45 |
IDS/IPS Throughput | 12.5 Gbps |
Max. Power Consumption | 82W |
Power Method | Universal AC input, 100-240V AC, 7A Max., 50/60 Hz |
Power Supply | (2) Hot-swappable 150W CRPS |
Supported Voltage Range | 100—240V AC |
ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
LCM Display | 1.3" touchscreen |
LEDs (Ethernet) | Yes |
LEDs (SFP+) | Yes |
Button | (1) Factory-reset |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Managed UniFi Devices | 500+ |
Simultaneous Users Connected | 5,000+ |
SSL/TLS Inspection Concurrent Sessions | 10,000 |
Concurrent Sessions | 1 Million |
New Sessions / Second | 71,000 |
Stateful Firewall | Yes |
Application-Aware Layer 7 Firewall | Yes |
SSL Inspection & URL Filtering | Yes |
DPI & Traffic Identification | Yes |
Zone-Based Firewall Advanced Filtering | Yes (Regions, Domains, Apps) |
Content Filtering | Yes |
Intrusion Prevention (IPS/IDS) | Yes |
Ad Blocking | Yes |
IDS/IPS Signatures | 95,000+ with CyberSecure Enterprise |
VLAN/Subnet-based Traffic Segmentation | Yes |
License-Free SD-WAN | Yes |
Site-to-Site VPN (Site Magic) | Yes (1.1 Gbps) |
Site-to-Site VPN (IPsec) | Yes (580 Mbps) |
Site-to-Site VPN (OpenVPN) | Yes (120 Mbps) |
VPN Server (Identity Endpoint One-Click VPN) | Yes (1.2 Gbps) |
VPN Server (Teleport) | Yes (1.2 Gbps) |
VPN Server (WireGuard) | Yes (1.2 Gbps) |
VPN Server (OpenVPN) | Yes (210 Mbps) |
VPN Server (L2TP) | Yes (280 Mbps) |
VPN Client (WireGuard) | Yes (980 Mbps) |
VPN Client (OpenVPN) | Yes (180 Mbps) |
Multi-WAN Load Balancing | Yes |
Shadow Mode (VRRP) High Availability | Yes |
Dynamic Routing (OSPF) | Yes |
Dynamic Routing (BGP) | Yes |
Advanced QoS | Yes |
Multicast DNS (mDNS) | Yes |
Advanced NAT | Yes (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT) |
Integrated RADIUS Server | Yes |
RADIUS over TLS (RadSec) | Yes |
Internet Failover with UniFi LTE Backup | Yes |
Internet Quality and Outage Reporting | Yes |
Policy-based WAN and VPN Routing | Yes |
Customizable DHCP Server | Yes |
IPv6 ISP Support | Yes |
IGMP Proxy | Yes |
Application Requirements (Mobile App) | UniFi iOS™: Version 10.16.2 and later; UniFi Android™: Version 10.17.2 and later |
