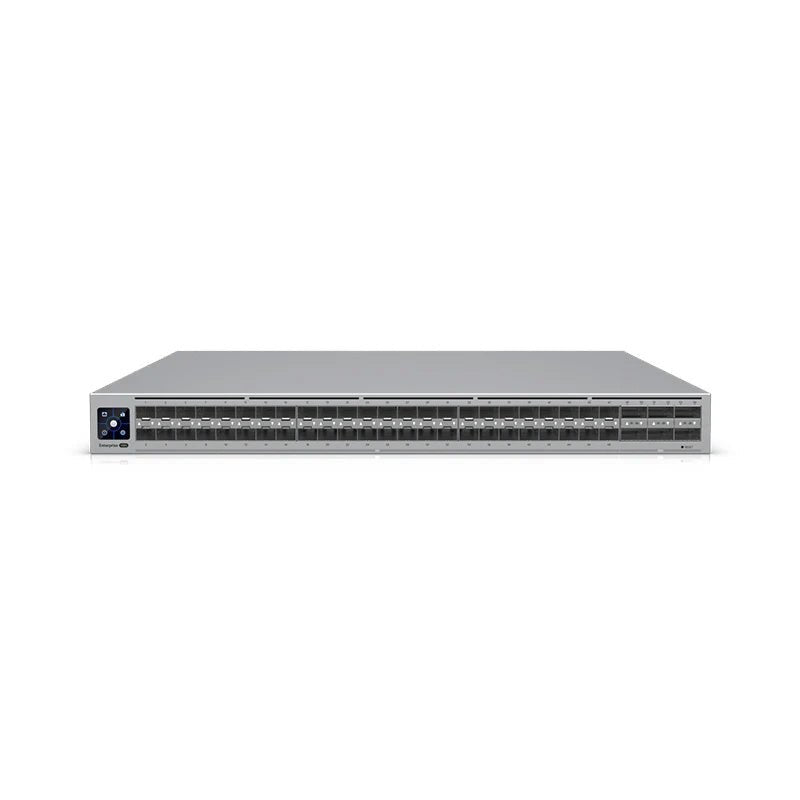

Unleash unparalleled network performance with this 1.8 Tbps high-density Layer 3 aggregation switch, featuring Etherlighting™ technology and Multi-Chassis Link Aggregation (MC-LAG) support for high availability. Equipped with (48) 25G SFP28 and (6) 100G QSFP28 ports, it’s designed for enterprise-grade scalability and reliability.
Specification | Details |
---|---|
Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
Weight | 9.9 kg (21.8 lb) |
Enclosure Material | SGCC steel |
Slide Rails Support | 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm), post depths 650 to 1,000 mm (25.6–39.4”) |
Management Interface | Ethernet In-Band |
Networking Interface | (6) 100/40G QSFP28 ports; (48) 25/10G SFP28 ports (1 Gbps not supported) |
Total Non-Blocking Throughput | 1.8 Tbps |
Switching Capacity | 3.6 Tbps |
Forwarding Rate | 2.3 Bpps |
Power Method | (2) Universal input, 100—240V AC |
Power Supply | (2) Hot-swappable AC/DC 550W power modules |
Supported Voltage Range | 100—240V AC |
Max. Power Consumption | 340W |
ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
Services | SMB Layer 3 100G/25G Fiber Switch |
LCM Display | (1) 1.3" touchscreen |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC |
Layer 2 Features | IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs, MC-LAG support |
Layer 3 Features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Automatic failover (VRRP)* |
Etherlighting™ (SFP28/QSFP28) | Locating, Speed/link, Native VLAN/network |
LEDs (System) | Status |
Application Requirements | UniFi Network: Version 8.5.6 and later |
