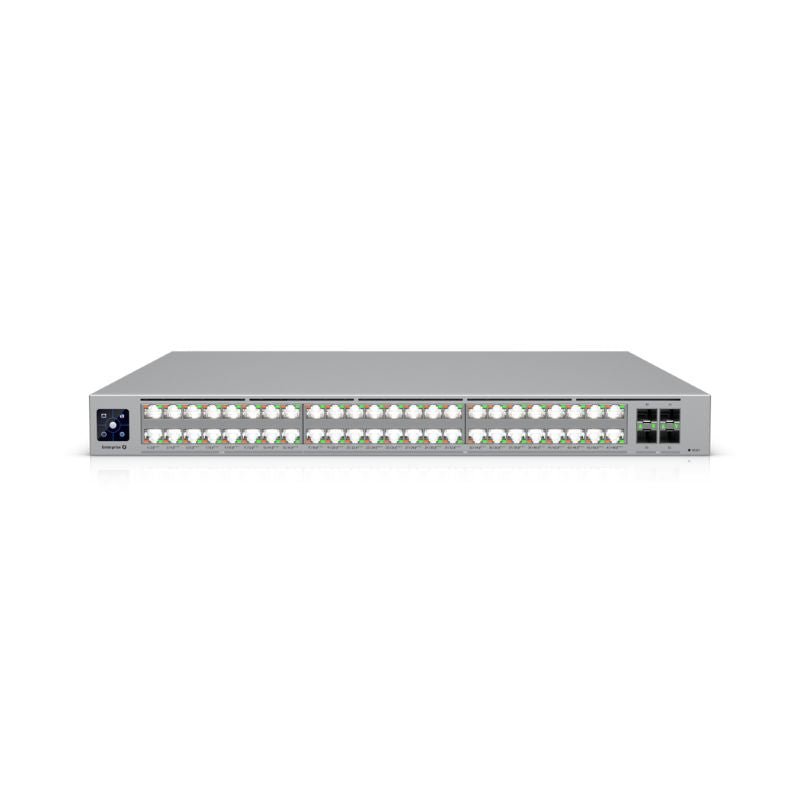

Ubiquiti - Enterprise Campus 48 PoE - ECS-48-PoE (2150W)

Enterprise Campus 48 PoE - ECS-48-PoE (2150W)

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Overview

• Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
• Form Factor: 1U Rack Mount
• Etherlighting™: Yes
• Redundancy: (2) Hot-Swappable PSUs, (4) Hot-Swappable Fans

Key Features

• Ports: (16) 2.5 GbE RJ45, (32) 10 GbE RJ45 (All PoE+++), (4) 25G SFP28
• Max PoE Output: Up to PoE+++ with 2,150W shared mode
• Switching Capacity: 920 Gbps
• Total Non-Blocking Throughput: 460 Gbps
• Layer 3: Yes (Supports Inter-VLAN Routing, Static Routing, DHCP Server)

Performance

• Forwarding Rate: 684 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 128,000
• L3 Table Size: 256,000 IPv4 Routes

Layer 3 Features

• DHCP Server (Local Networks)
• Inter-VLAN Routing (Local Networks)
• Static Routing (Local Networks)

Layer 2 Features

• LACP Port Aggregation
• STP & RSTP
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs & Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• LLDP-MED
• Voice VLAN
• Loop Protection

Hardware

• PoE Ports: 48 (PoE+++)
• Max PoE Wattage per Port: 90W (PoE+++)
• Max Power Consumption: 250W (Excluding PoE Output) - 2,400W (Including PoE Output)
• Power Method: (2) Universal input, 100-240V AC, 50/60 Hz
• Power Input Method: (2) AC input, Hot-swappable power modules
• Power Supply: (2) Hot-swappable AC/DC 1,200W power modules
• Supported Voltage Range: 100—240V AC
• Management: Ethernet, AR
• Heat Dissipation (Excluding PoE Output): 853 BTU/hr
• Weight: With mounting brackets: 9.56 kg (21.1 lb) - Without mounting brackets: 9.46 kg (20.9 lb)
• Enclosure Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks, Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• LCM Display: 1.3" touchscreen
• ESD/EMP Protection: Air: ± 30kV, contact: ± 19kV
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™: Ethernet, SFP28
• LEDs: Ethernet, System
