Ubiquiti Enterprise Audio/Video Bridge (EAV-Bridge) – PoE+ 4K60 HDMI & XLR AV-over-IP Transceiver

The Ubiquiti Enterprise Audio/Video Bridge (EAV-Bridge) is a professional-grade AV-over-IP transceiver designed to seamlessly bridge 4K60 HDMI video and professional XLR audio across network-based AV systems. Functioning as either an audio/video source or destination, the EAV-Bridge gives integrators the flexibility to build everything from simple point-to-point connections to advanced 8x8 TV wall configurations.

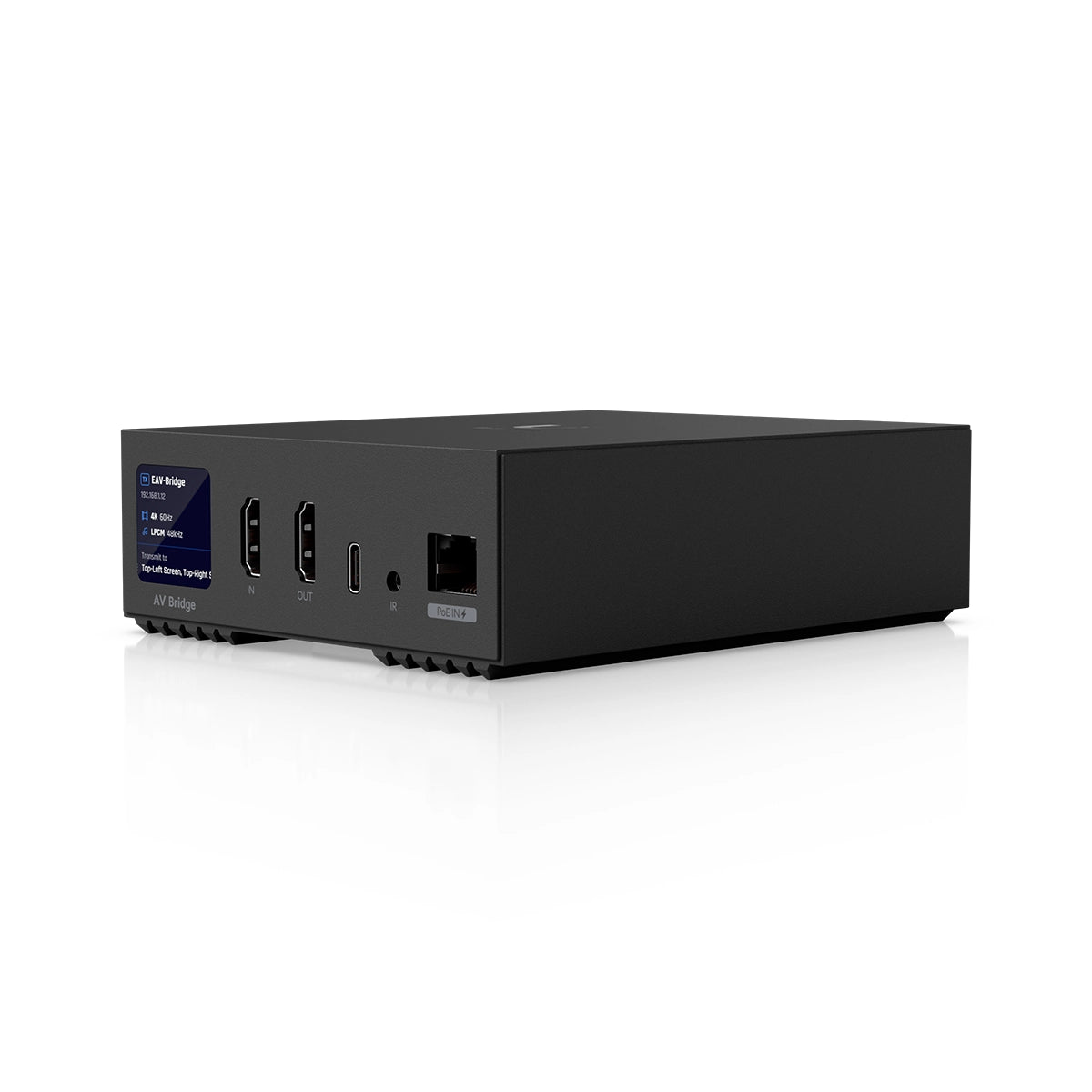

Powered by PoE+ and featuring a compact aluminum enclosure with DIN rail, wall, and pole mounting options, the EAV-Bridge is the ideal AV distribution solution for boardrooms, classrooms, retail signage, broadcast environments, and large-scale commercial installations.

Key Features

• 4K60 HDMI Distribution: Full HDMI 2.0 input and output supporting 4K resolution at 60 FPS
• Professional XLR Audio Support: Balanced analog XLR inputs and outputs with 48V phantom power for studio-grade microphones
• AV-over-IP Architecture: Transmit and receive audio/video signals across standard IP networks
• Flexible Signal Distribution: 1-to-1, 1-to-N streaming, and up to 8x8 TV wall configurations
• PoE+ Powered: Single-cable installation with up to 14W maximum power consumption
• Etherlighting™ Port: Illuminated Gigabit Ethernet port for easy visual identification
• 1.3" LCM Touchscreen Display: On-device control and real-time status monitoring
• USB Type-C Versatile Port: 5V / 1A output for accessory connectivity
• IR Pass-Through: 3.5 mm IR input/output for legacy device control integration

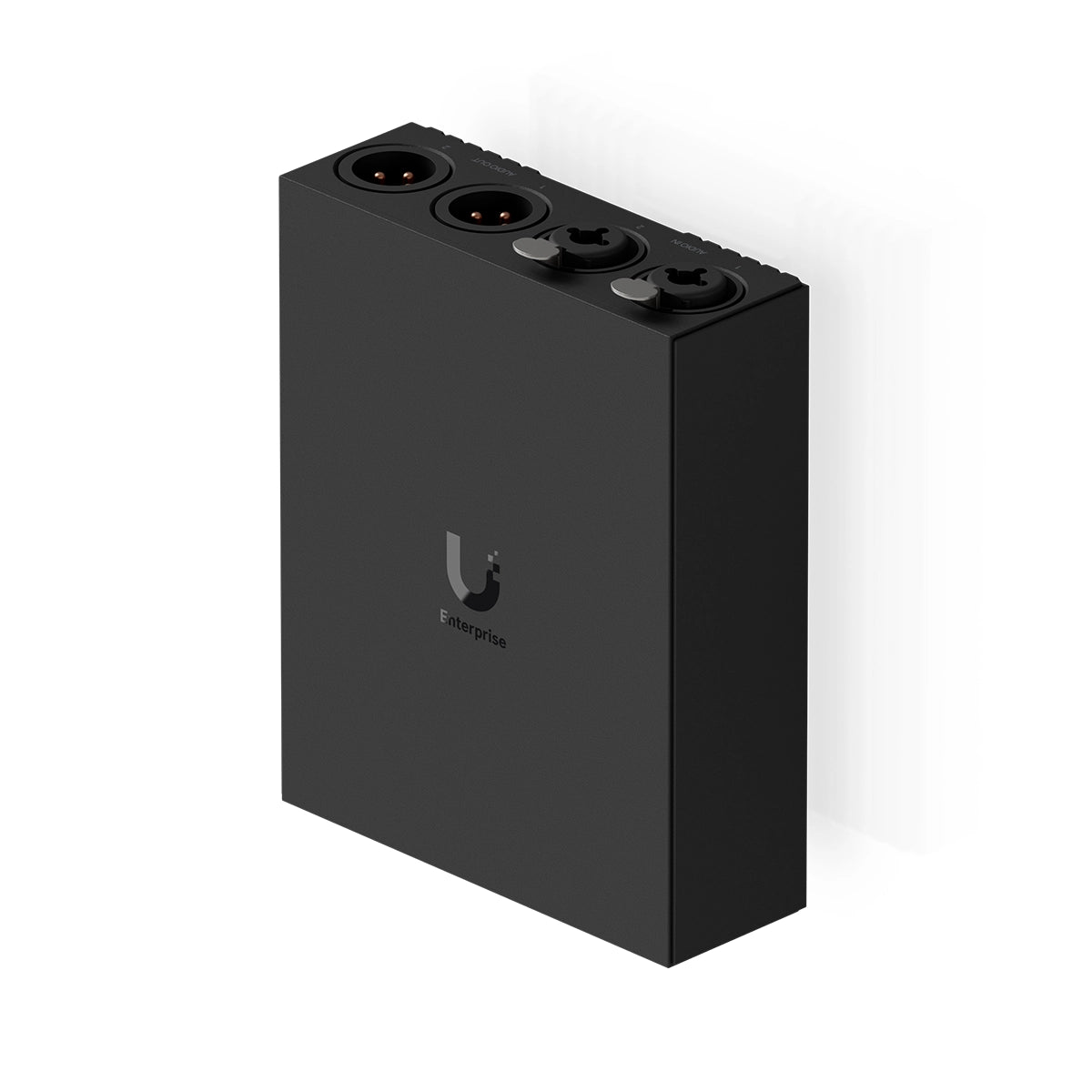

• Versatile Mounting: DIN rail, wall, and pole mount (1.5"–2") accessories included
• NDAA Compliant: Suitable for government and security-conscious AV deployments

Audio Capabilities

• Output Mode: Mono / Stereo sound
• Surround Format: PCM

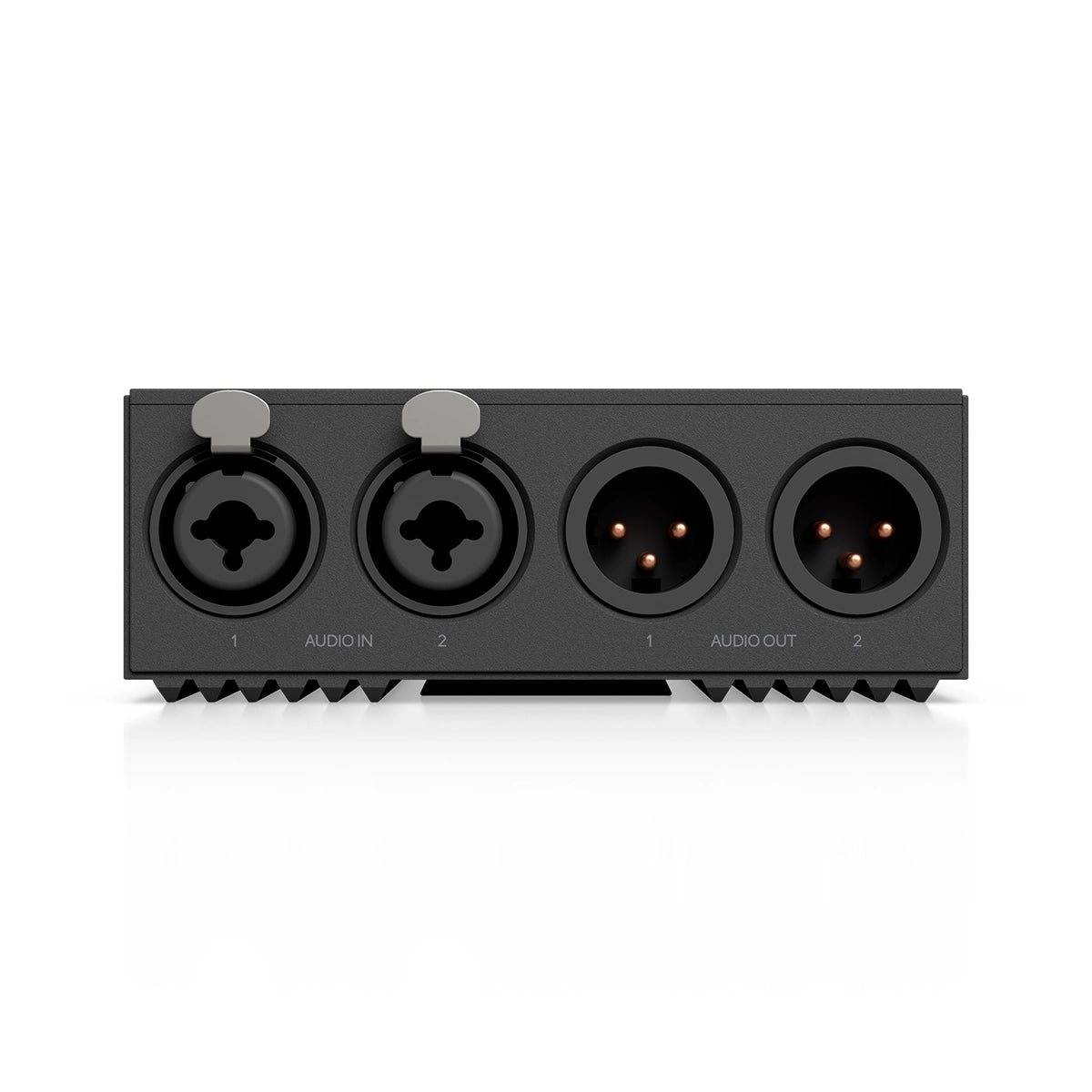

• Audio Input: (1) HDMI input + (2) XLR female analog with 6.35 mm combo jacks, 48V DC phantom power supported
• Audio Output: (1) HDMI output + (2) XLR male analog outputs
• Frequency Response: 20 Hz – 20 kHz ±0.5 dB

Video Capabilities

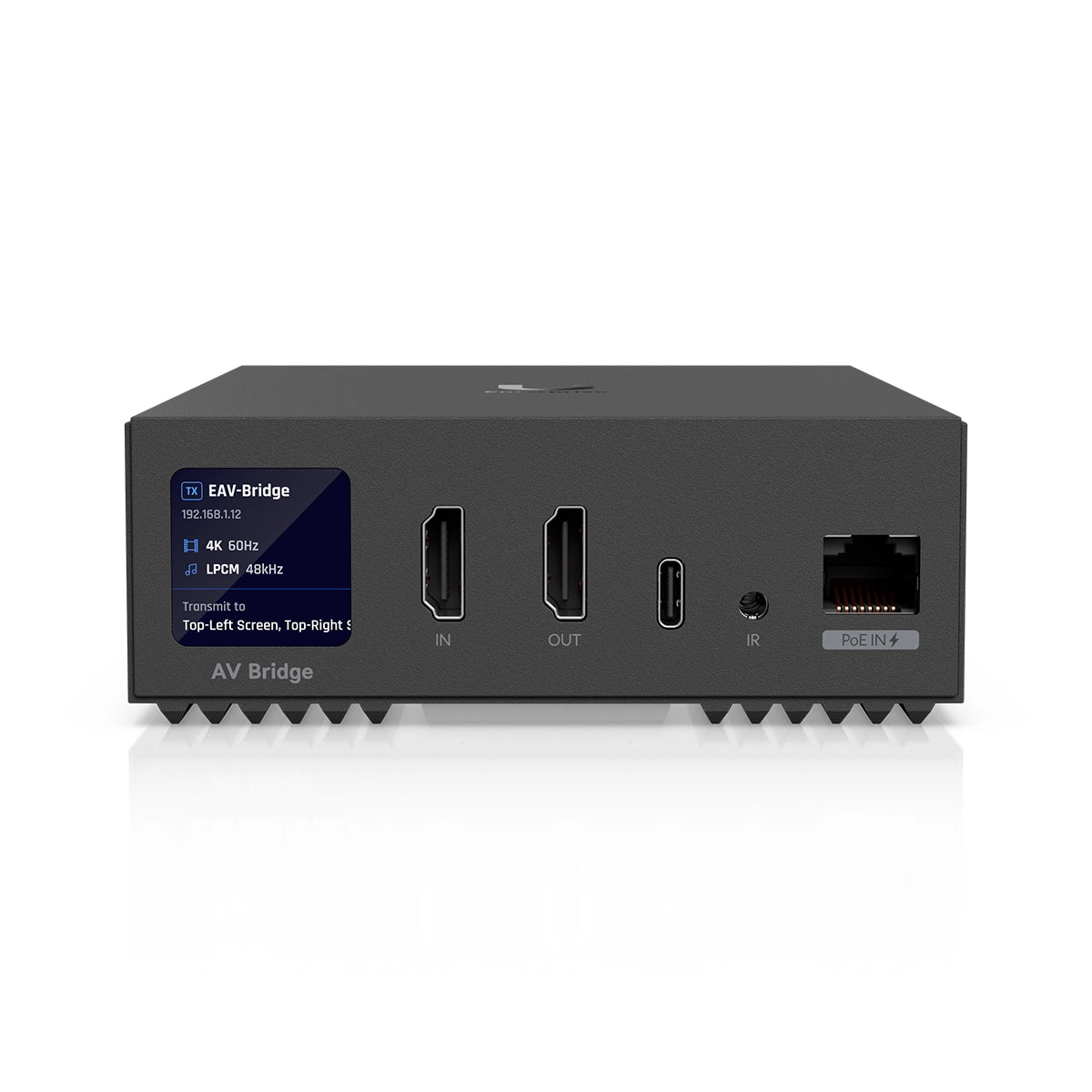

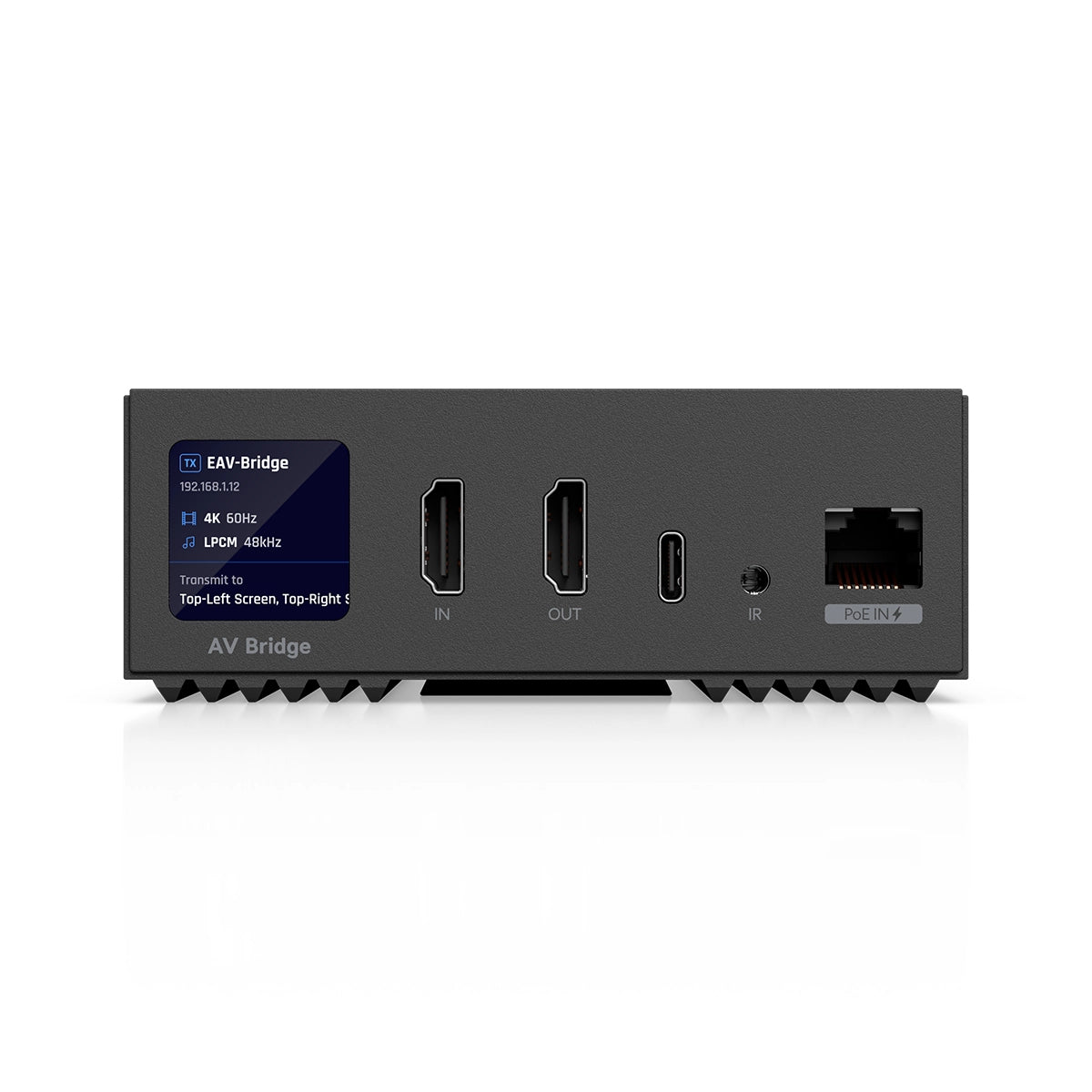

• Video Input: (1) HDMI 2.0, 4K @ 60 Hz (60 FPS)
• Video Output: (1) HDMI 2.0, 4K @ 60 Hz (60 FPS)
• Resolution Support: 480p / 720p / 1080p / 4K
• Signal Distribution: 1-to-1, 1-to-N streaming, up to 8x8 TV wall

Technical Specifications

The Ubiquiti Enterprise Audio/Video Bridge (EAV-Bridge) brings broadcast-grade flexibility to modern AV-over-IP installations. Whether you're powering a corporate boardroom, a video wall, a classroom, or a multi-zone retail environment, the EAV-Bridge delivers reliable 4K60 video, professional XLR audio, and unmatched signal routing — all over a single PoE+ Ethernet cable.
