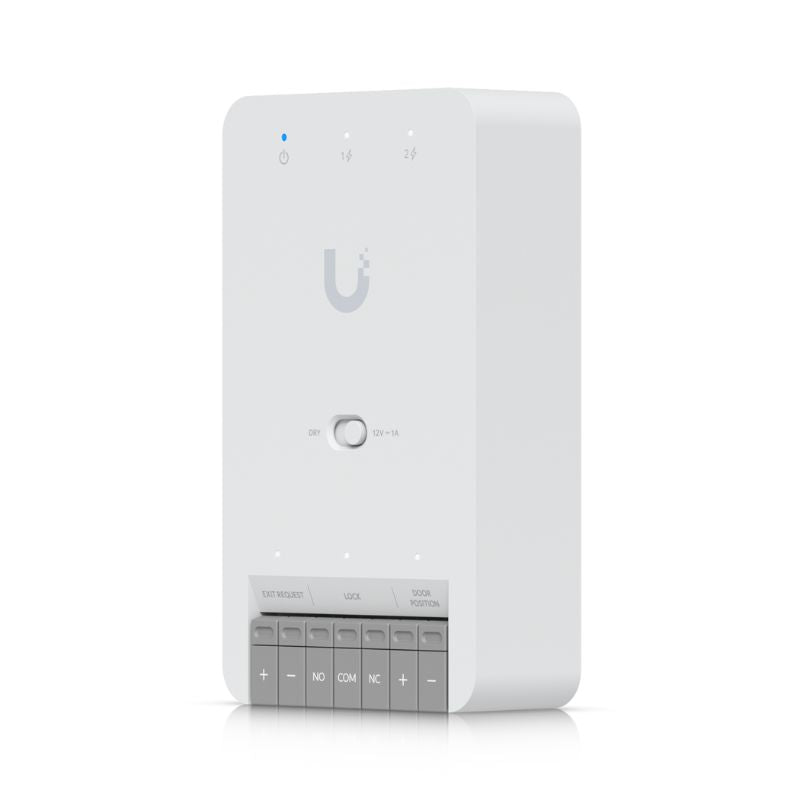

Secure a single door with this compact Access Control Hub, designed for seamless integration with UniFi Access Readers or Protect Cameras. Featuring PoE++ connectivity, a switchable lock terminal, and additional inputs, it offers a robust solution for indoor access management.
Specification | Details |
---|---|
Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") |
Weight | 190 g (6.7 oz) |
Enclosure Material | Polycarbonate, metal |
Networking Interface | (3) GbE RJ45 ports |
Power Method | PoE++ |
Max. Power Consumption | Without PoE output: 19W; With PoE output: 50W |
PoE Input | 50V DC, 1A |
PoE Output | (2) PoE ports, total 31W |
Button | (1) Factory-reset; (1) Dry/Wet switch |
Digital Input | Request to exit/door position sensor |
Output Relay | Dry: 30V DC, 1A; Wet: 12V DC, 1A |
Recommend Max. Cable Length (UA-Lock-Electric, 400mA) | 18 AWG: 100 m (328 ft); 20 AWG: 66 m (217 ft); 22 AWG: 42 m (138 ft); 24 AWG: 25 m (82 ft) |
Recommend Max. Cable Length (UA-Lock-Magnetic-270kg, 800mA) | 18 AWG: 46 m (151 ft); 20 AWG: 30 m (98 ft); 22 AWG: 20 m (66 ft); 24 AWG: 12 m (29 ft) |
Recommend Max. Cable Length (UA-Lock-Magnetic-540kg, 500mA) | 18 AWG: 80 m (262 ft); 20 AWG: 51 m (167 ft); 22 AWG: 32 m (105 ft); 24 AWG: 20 m (66 ft) |
Recommend Max. Cable Length (Other Locks, 1A) | 18 AWG: 36 m (118 ft); 20 AWG: 24 m (79 ft); 22 AWG: 15 m (49 ft); 24 AWG: 9 m (30 ft) |
PoE Cabling Requirements | Cat 5e min.; 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal/riser |
Operating Environment | Indoor use only |
Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
Ambient Operating Humidity | 5 to 90% noncondensing |
Software Information | Check version at https://unifi.ui.com |
Certifications | CE, FCC, IC |
Document Number | UA-Hub-Door-Mini, V01 |
Management Application | UniFi Access: Version 2.5.2 and later |
LEDs | PoE in: System status; PoE out: Wire status/activity; Input/output relay: Wire status/activity |
