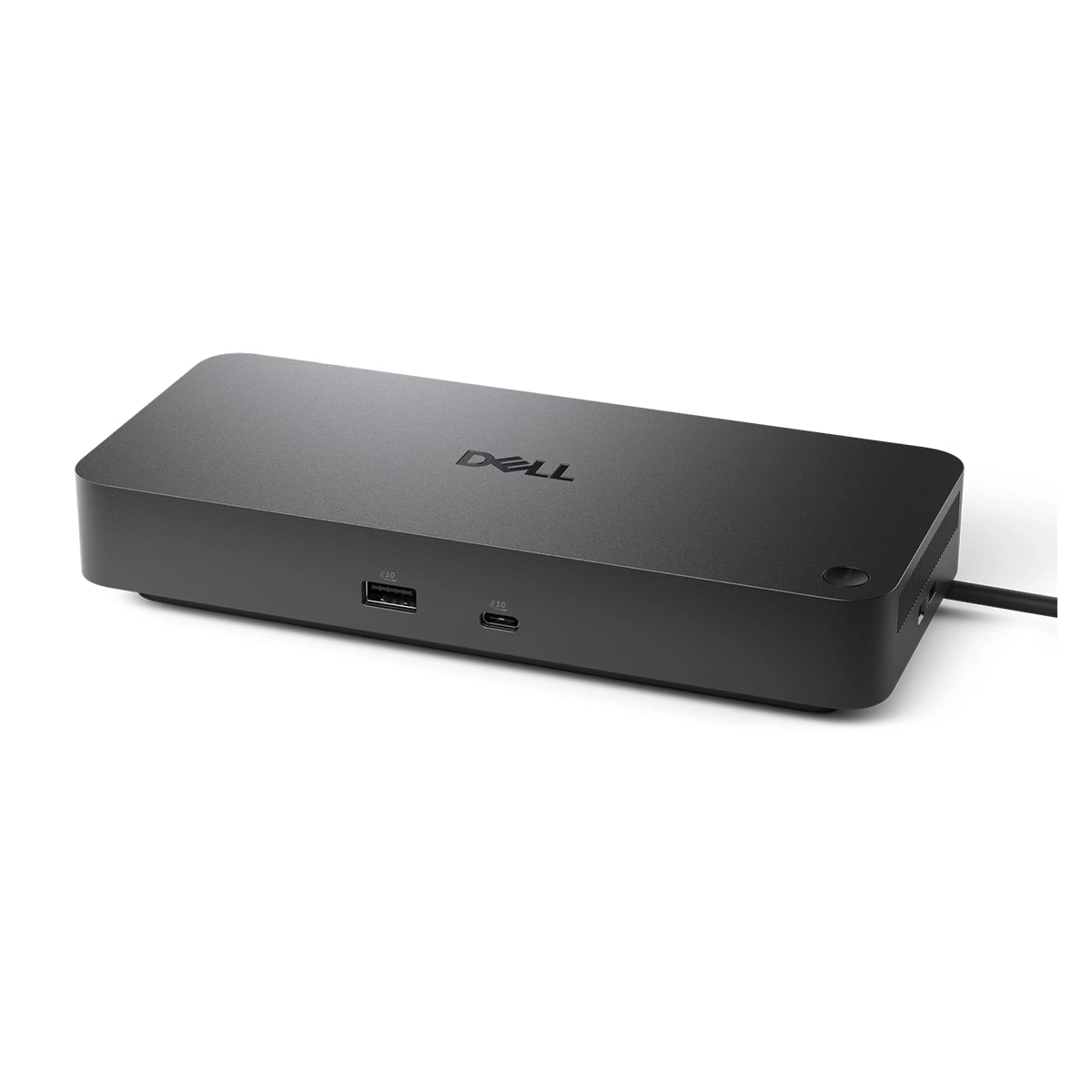

Dell Pro Dock WD25Z – USB-C Docking Station with 130W Power Delivery, 4K/5K/6K Display Support & 2.5GbE

The Dell Pro Dock WD25Z is a next-generation USB-C docking station designed to boost productivity for professionals working with multiple displays and high-performance peripherals. Delivering up to 130W of power to Dell systems (96W for non-Dell devices), the WD25Z transforms any compatible notebook or desktop into a fully equipped workstation with a single USB-C connection.

With support for up to 4 simultaneous displays at resolutions reaching 6K @ 60Hz, 2.5 Gigabit Ethernet, and a comprehensive set of USB 3.2 Gen 2 ports, the Dell Pro Dock WD25Z is the ideal companion for IT professionals, content creators, engineers, and hybrid workforce environments.

Key Features and Benefits

• 130W Power Delivery: Charges Dell systems with full performance (96W for non-Dell laptops)
• Multi-Display Support: Drive up to 4 displays simultaneously across DP, HDMI, and USB-C
• Ultra-High Resolution Support: Up to 6K @ 60Hz single display, 5K dual display, 4K single, WQHD quad
• 2.5 Gigabit Ethernet: Built-in 2.5GbE for ultra-fast wired networking
• Power Delivery Pass-Through: Charges connected USB devices even without a host PC
• Comprehensive Connectivity: 2x DP 1.4, 1x HDMI 2.1, 1x USB-C MFDP, 4x USB-A 3.2 Gen 2, 1x USB-C 3.2 Gen 2
• Advanced Management Tools: MAC Address Pass-through, PXE Boot, Wake-on-LAN, Dell Command Update integration
• Cloud-Based Firmware Management: Remote updates via Dell Device Management Console
• Enhanced Security: Kensington and Noble Wedge security slots, Kernel DMA Protection
• LED Power Indicators: Visual status feedback for power and connectivity

Display Support and Configurations

• Quad Display: SXGA @ 60Hz / WQHD @ 60Hz
• Triple Display: FHD @ 60Hz / WQHD @ 60Hz
• Dual Display: QHD @ 60Hz / 5K @ 60Hz
• Single Display: 4K @ 60Hz / 6K @ 60Hz
• Supported Resolutions: 1280x1024, 1920x1080, 2560x1440, 3440x1440, 3840x2160, 5120x2160, 6144x3456

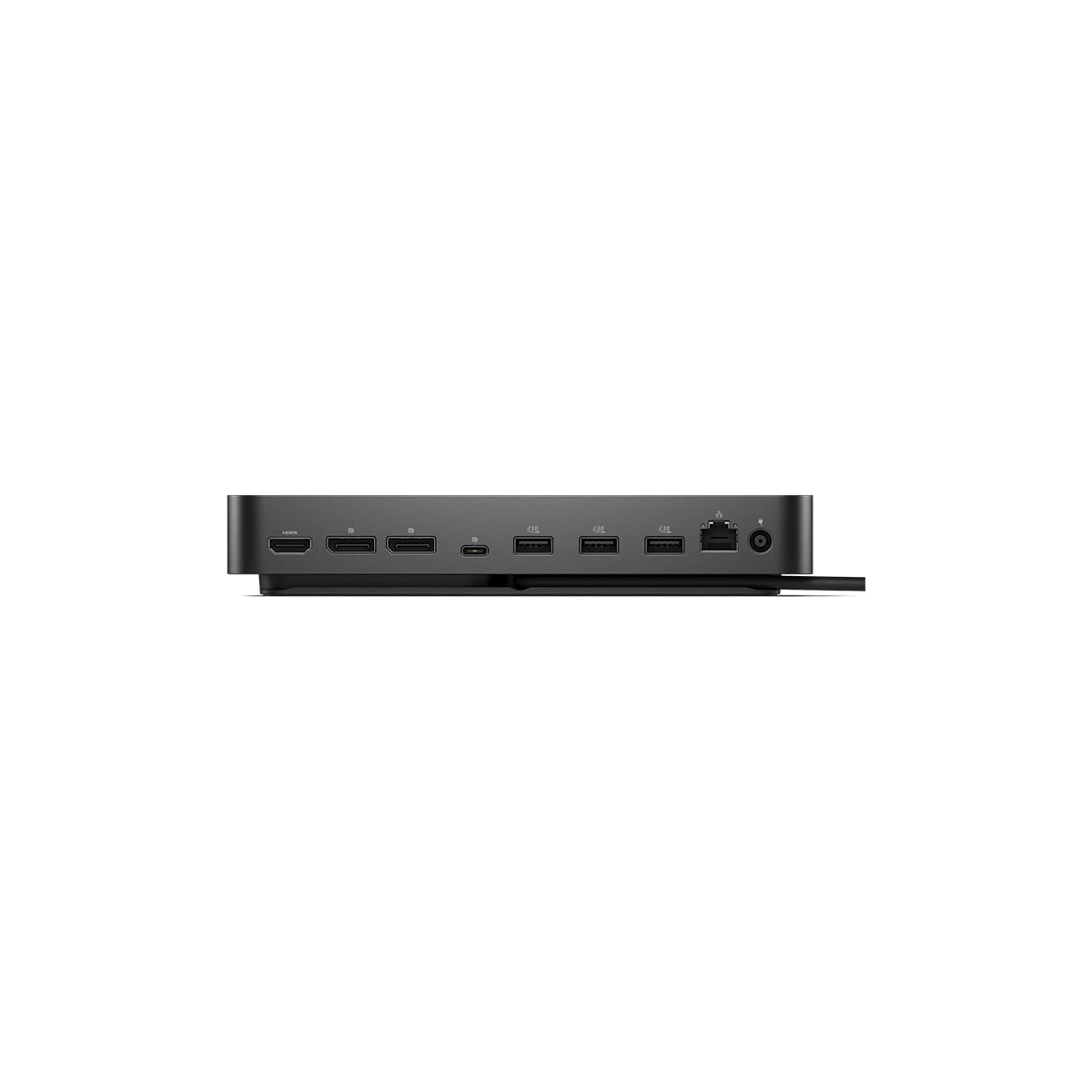

Ports and Interfaces

• Video Outputs:
  • 2 × DisplayPort 1.4
  • 1 × HDMI 2.1
  • 1 × USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
• USB Data Ports:
  • 4 × USB-A 3.2 Gen 2 (10 Gbps, 4.5W each)
  • 1 × USB-C 3.2 Gen 2 (10 Gbps, 15W)
• Network: 1 × RJ-45 (2.5 Gigabit Ethernet)
• Host Interface: USB Type-C
• Security Slots: Kensington + Noble Wedge

Management and Software

• Host Software (Windows): Dell Firmware Utility, Dell Display and Peripheral Manager, Dell Command Update
• Dell Device Management Console (Cloud): Automatic firmware updates, version control, peripheral inventory & status
• Enterprise Management Features: MAC Address Pass-through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel DMA Protection, Port Disablement, Host PC firmware updates, Firmware update on disconnect

Technical Specifications

What's in the Box

• Dell Pro Dock WD25Z Docking Station
• Power Adapter
• Power Cord
• Documentation (Quick Start Guide, Safety, Environmental & Regulatory Information)

The Dell Pro Dock WD25Z redefines workstation expansion with its powerful 130W output, multi-display flexibility, and enterprise-grade management capabilities. Whether you're docking a high-end workstation or building a hybrid hot-desking setup, the WD25Z delivers the connectivity, performance, and reliability today's professionals demand — all through a single USB-C cable.
