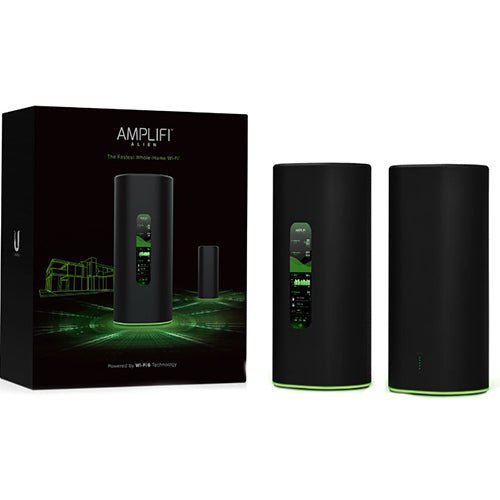

Experience unparalleled WiFi range and performance with the world’s only 16-stream WiFi router. Paired with a MeshPoint for seamless coverage expansion, this router delivers lightning-fast speeds and robust connectivity, perfect for demanding home or office environments.
Specification | Details |
---|---|
Dimensions (Router) | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
Dimensions (MeshPoint) | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
Weight (Router) | 1.2 kg (2.7 lb) |
Weight (MeshPoint) | 1.1 kg (2.4 lb) |
Enclosure Material | Polycarbonate |
Processor | Quad-Core ARM® Cortex® A53s at 2.2 GHz |
Memory | Router/MeshPoint: 1GB DDR3L |
Management Interface | WiFi, Ethernet |
Networking Interface (Router) | (1) GbE RJ45 WAN, (4) GbE RJ45 LAN |
Networking Interface (MeshPoint) | (1) GbE RJ45 LAN |
Power Method | Router/MeshPoint: Universal AC input, 100–240V AC, 1A Max., 50/60 Hz |
Max. Power Consumption | Router: 35W; MeshPoint: 34W |
ESD/EMP Protection | Air/contact: ± 24kV |
Max. TX Power (US) | 2.4 GHz: 23 dBm; 5 GHz: 19 dBm (low band) / 20 dBm (high band) |
Max. TX Power (International) | 2.4 GHz: 23 dBm*; 5 GHz: 20 dBm** (*Up to 30 dBm per chain; **Up to 24 dBm per chain, country-dependent) |
MIMO (US) | 2.4 GHz: 4 x 4; 5 GHz: 4 x 4 (low band) / 8 x 8 (high band) |
MIMO (International) | 2.4 GHz: 4 x 4; 5 GHz: 8 x 8 |
Speeds (US) | 2.4 GHz: 1150 Mbps; 5 GHz: 1700 Mbps (low band) / 4800 Mbps (high band) |
Speeds (International) | 2.4 GHz: 1148 Mbps; 5 GHz: 4800 Mbps |
Antenna Gain | 2.4 GHz: 3 dBi; 5 GHz: 6 dBi |
Antenna | Router/MeshPoint: Internal dual-band metal stamp with 12 polarity |
Display (Router) | 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color |
Display (MeshPoint) | No display |
LEDs (Router/MeshPoint) | Green ring |
LEDs (MeshPoint Status) | Green: Flashing (initial config), Sequential (bootup/WiFi not ready), Steady (adopted), Quick flash (locate), Sequential (firmware upgrading) |
Button | Router/MeshPoint: Factory reset |
Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
WiFi Standards | Up to WiFi 6 |
WiFi Functions | MU-MIMO, OFDMA, TX-beamforming |
Wireless Security | WPA2 |
VLAN | Yes |
Advanced QoS | Yes |
Guest Traffic Isolation | Yes |
Power Save | Yes |
Supported Data Rates | 802.11a: 54 Mbps; 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: 600 Mbps + 600 Mbps; 802.11ac: 1733 Mbps + 800 Mbps; 802.11ax: 4800 Mbps (Backbone), 4800 Mbps + 1148 Mbps (Clients) |
Operating Frequency | 2.4 GHz: 2412 - 2472 MHz; 5 GHz: 5150 - 5875 MHz (Region-dependent) |
