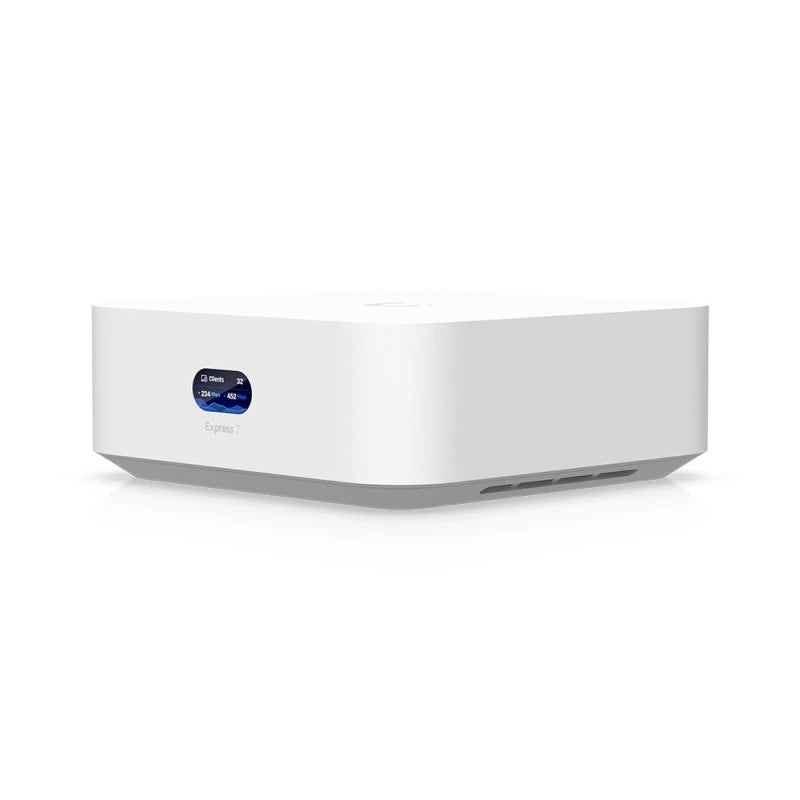

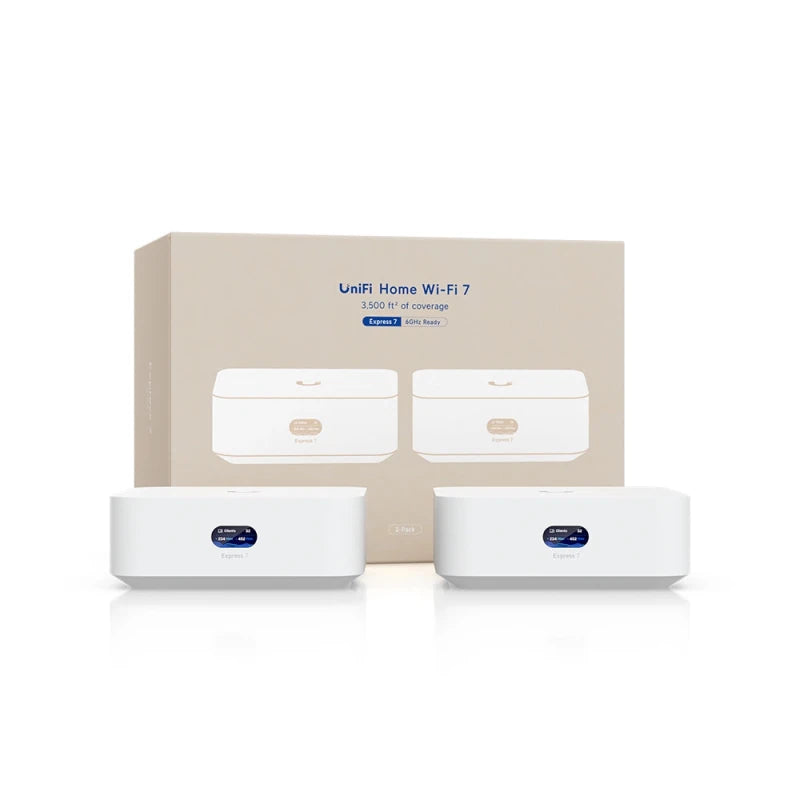

Ubiquiti Whole Home WiFi 2-Pack (UX7-2) – WiFi 7, 10G Cloud Gateway, 6 GHz Mesh & Multi-Link Operation

The Ubiquiti Whole Home WiFi 2-Pack (UX7-2) is a compact, mesh-scalable networking solution designed to provide high-performance whole-home connectivity with integrated WiFi 7, 6 GHz wireless, and 10 Gigabit Ethernet. Combining a UniFi Cloud Gateway with powerful tri-band wireless capabilities, the UX7 platform delivers simple deployment, intelligent placement guidance, and effortless mesh expansion.

Designed for homes, professional environments, and advanced network deployments, the UX7 supports more than 300 simultaneous connected users, manages 30+ UniFi devices, and provides approximately 160 m² (1,750 ft²) of coverage per unit. Advanced security, VPN, SD-WAN, VLAN segmentation, firewall controls, and UniFi Network management are integrated directly into the platform.

Key Features and Benefits

• WiFi 7 Performance: Supports 802.11be WiFi 7 with tri-band 2.4 GHz, 5 GHz, and 6 GHz wireless connectivity
• 6 GHz Connectivity: Delivers wireless throughput of up to 5.7 Gbps on the 6 GHz band

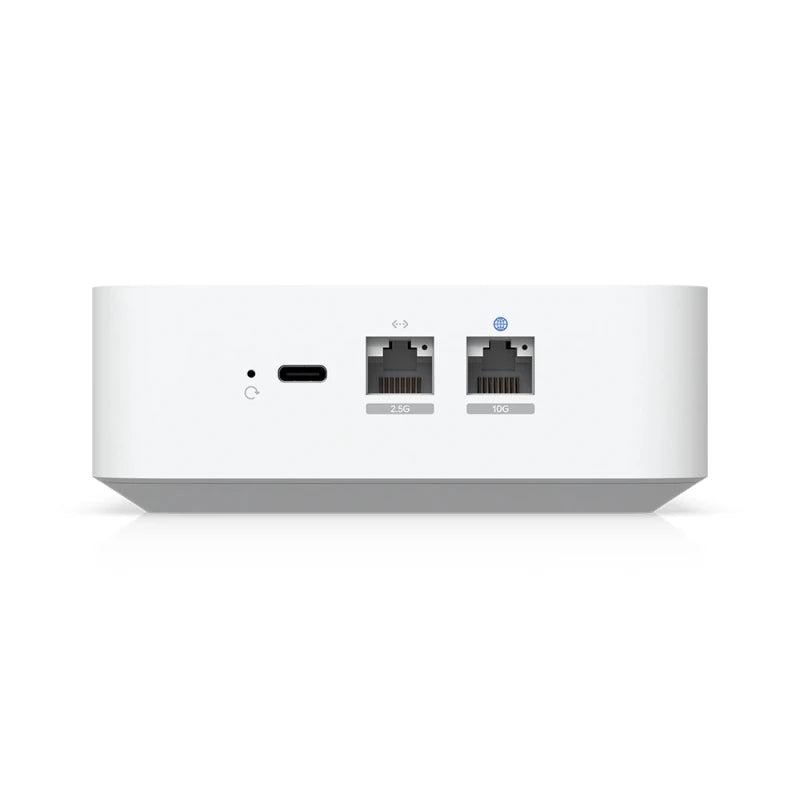

• 10 Gigabit Ethernet: Includes a 10 GbE RJ45 interface supporting 10G, 5G, 2.5G, 1G, and 100 Mbps connections
• 2.5 Gigabit Ethernet: Additional 2.5 GbE RJ45 interface for high-speed wired networking
• Mesh-Scalable Design: Expand WiFi coverage easily by adding compatible UniFi nodes
• Whole-Home WiFi: Plug-and-play mesh deployment with intelligent placement guidance
• Multi-Link Operation: Designed to take advantage of WiFi 7 Multi-Link Operation for improved wireless performance
• Integrated Cloud Gateway: Combines routing, security, UniFi Network management, and wireless connectivity in one compact device
• Advanced Network Security: Includes stateful firewall, Layer 7 application-aware filtering, DPI, IPS/IDS, content filtering, and ad blocking
• License-Free SD-WAN: Supports UniFi Site Magic and multiple site-to-site VPN technologies
• 300+ Connected Users: Designed for dense networks with hundreds of simultaneous client devices
• Compact Desktop Form Factor: Measures only 117 x 117 x 42.5 mm for discreet installation

Gateway and Network Performance

• Managed UniFi Devices: Supports 30+ managed UniFi devices
• Simultaneous Users: Supports 300+ connected users
• IDS/IPS Throughput: Up to 2.3 Gbps
• Default WAN: One 10 GbE RJ45 WAN interface
• Dynamic Routing: OSPF support for advanced routing deployments
• Advanced QoS: Built-in traffic prioritization and network optimization
• Advanced NAT: Supports SNAT, DNAT, Masquerade, NAT Pooling, and 1-to-1 NAT
• IPv6: Supports IPv6 connectivity from compatible ISPs
• WAN and VPN Policy Routing: Provides policy-based traffic routing across WAN and VPN connections

Integrated WiFi Performance

Security Features

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI and Traffic Identification: Yes
• Zone-Based Firewall: Advanced filtering by regions, domains, and applications
• Content Filtering: Yes
• Intrusion Prevention: IPS/IDS support
• Ad Blocking: Yes
• IDS/IPS Signatures: 20,000+ signatures with CyberSecure
• Traffic Segmentation: VLAN and subnet-based segmentation

VPN and SD-WAN

• License-Free SD-WAN: Yes
• Site Magic: Site-to-site VPN support
• IPsec: Supported
• OpenVPN Site-to-Site: Supported
• Identity Endpoint One-Click VPN: Supported
• Teleport Zero-Configuration VPN: Supported
• WireGuard VPN Server: Supported
• OpenVPN Server: Supported
• L2TP Server: Supported
• OpenVPN Client: Supported
• WireGuard Client: Supported

Networking Features

• OSPF Dynamic Routing
• Advanced QoS
• Multicast DNS (mDNS)
• SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT
• Integrated RADIUS Server
• RADIUS over TLS (RadSec)
• UniFi LTE Backup Support
• Internet Quality and Outage Reporting
• Policy-Based WAN and VPN Routing
• Customizable DHCP Server
• IPv6 ISP Support
• IGMP Proxy
• Virtual Network Override
• 802.1Q VLAN Support
• Guest Traffic Isolation

Technical Specifications

Supported WiFi Data Rates

• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps – MCS0 to MCS13, NSS1/2, EHT 20/40/80/160/240/320
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps – MCS0 to MCS11, NSS1/2, HE 20/40/80/160
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps – MCS0 to MCS9, NSS1/2, VHT 20/40/80/160
• 802.11n: 6.5 Mbps to 300 Mbps – MCS0 to MCS15, HT 20/40
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Software and Management

• UniFi Application Suite: UniFi Network
• VLAN: 802.1Q
• Guest Traffic Isolation: Supported
• Application Requirement: UniFi Network version 9.0.108 or later
• Management: Ethernet and Bluetooth

The Ubiquiti Whole Home WiFi 2-Pack (UX7-2) combines WiFi 7, 6 GHz wireless connectivity, 10 Gigabit Ethernet, advanced UniFi routing, enterprise-grade security, VPN functionality, and scalable mesh networking in an exceptionally compact platform. With support for hundreds of connected devices, high-speed Multi-Link Operation, intelligent mesh expansion, and centralized UniFi Network management, it is designed to provide a powerful and flexible whole-home networking solution for demanding modern environments.
