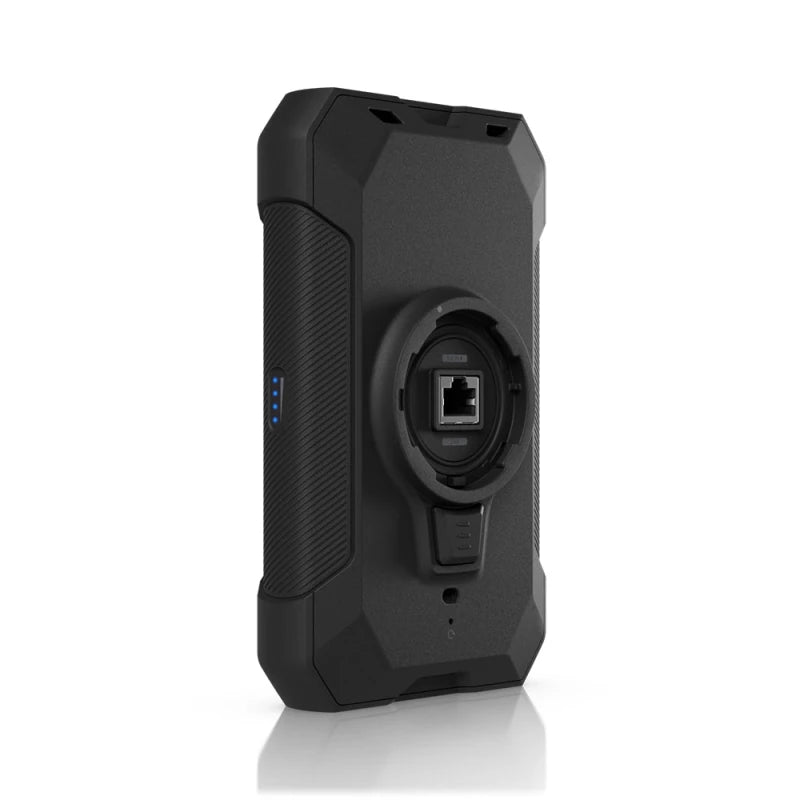

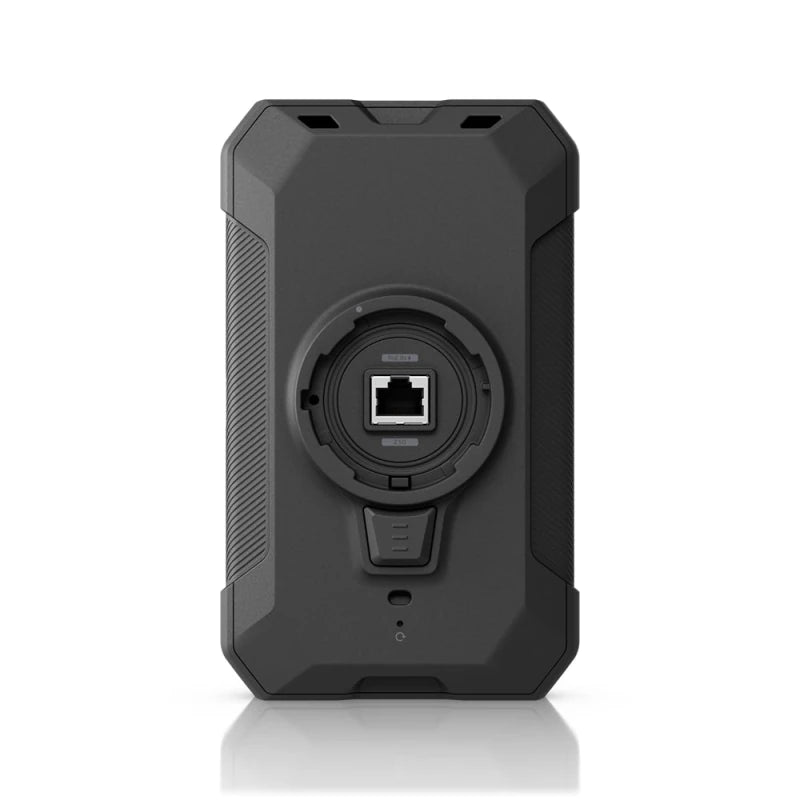

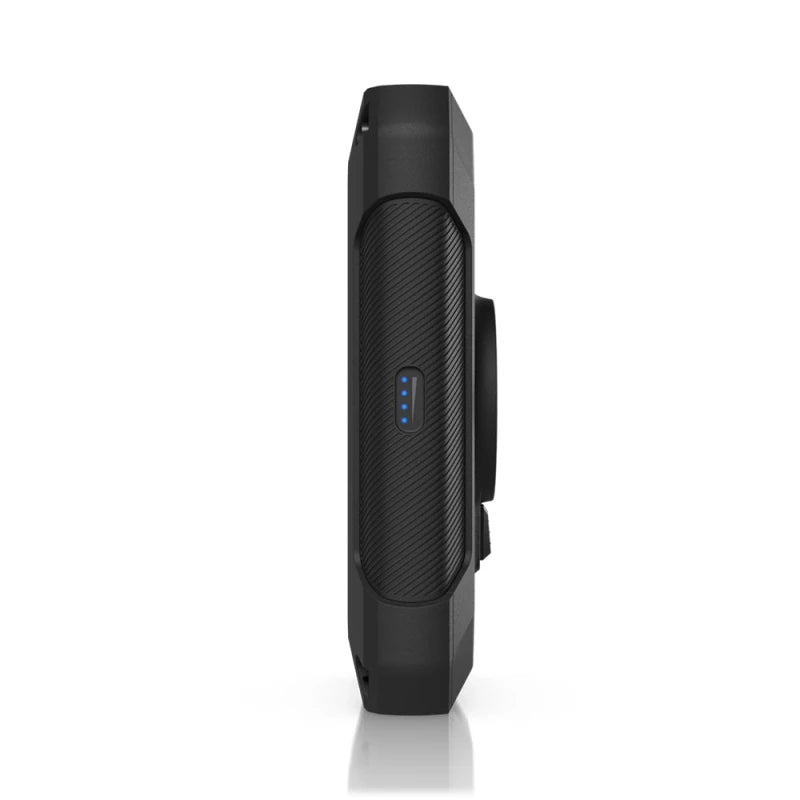

Ubiquiti U7 Industrial WiFi 7 Access Point (U7-Industrial)

Bring WiFi 7 connectivity to demanding environments with the Ubiquiti U7 Industrial. Featuring IP67 weatherproofing and an operating temperature range of -40 to 70°C, this industrial access point combines rugged construction with dual-band wireless performance, a 2.5 GbE uplink, and single-cable PoE connectivity.

An integrated high-gain directional RF system with adjustable isolation and beamwidth control lets you tailor coverage to your installation. Choose built-in directional coverage, wide or narrow reflector configurations, or external omnidirectional antennas. With a coverage area of up to 465 m² and support for 200+ clients, the U7 Industrial provides flexible connectivity for industrial sites and outdoor spaces.

Key Features

• Dual-Band WiFi 7: Four spatial streams with 2 × 2 DL/UL MU-MIMO on both 5 GHz and 2.4 GHz bands.
• High Wireless Data Rates: Maximum rates of 4.3 Gbps on 5 GHz with 240 MHz bandwidth and 688 Mbps on 2.4 GHz with 40 MHz bandwidth.

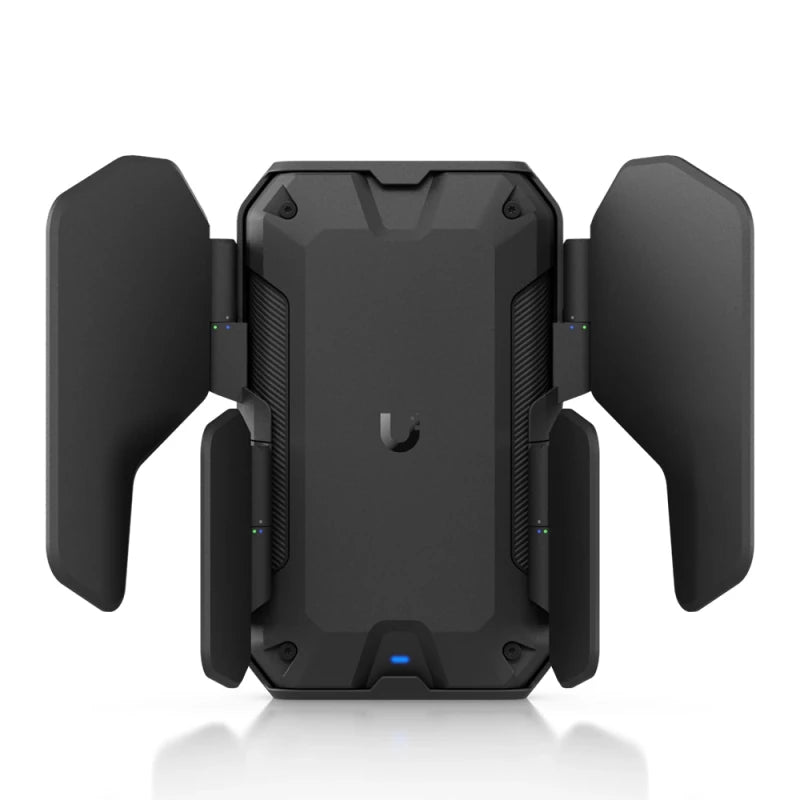

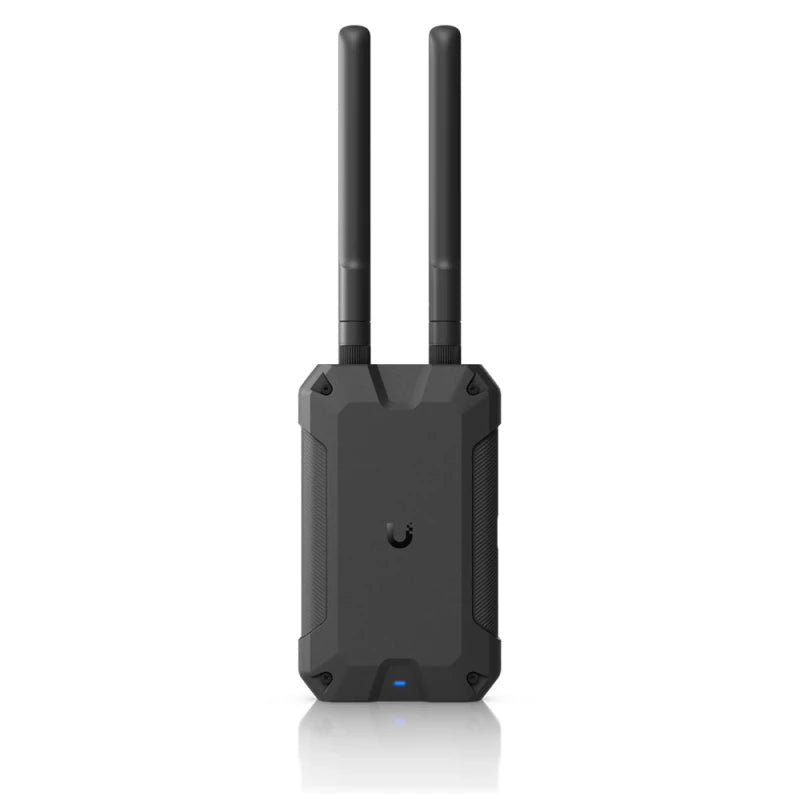

• Flexible RF Coverage: Built-in directional antennas, adjustable reflector configurations, and external omnidirectional antenna options accommodate different coverage needs.
• IP67 Weatherproofing: A UV-stabilized polycarbonate and aluminum alloy enclosure supports demanding deployments.
• Extended-Temperature Operation: Operates from -40 to 70°C (-40 to 158°F).
• 2.5 GbE Uplink & PoE: Deliver network connectivity and power through a single Ethernet cable, with maximum power consumption of 13W.
• Wide Coverage & Client Capacity: Covers up to 465 m² (5,000 ft²) and supports 200+ clients.
• Advanced Radio Management: Supports wireless meshing, band steering, fast roaming, and real-time spectral analysis.
• Flexible Network Access: Includes captive portal options, PPSK, RadSec, dynamic RADIUS-assigned VLANs, and guest isolation.
• Wall & Pole Mounting: Mounts are included, with support for poles measuring 25–63.5 mm in diameter.

Technical Specifications

Antenna Gain & Beamwidth

Wireless & Network Features

• Radio Management: Wireless meshing, band steering, advanced radio management, and real-time spectral analysis.
• Roaming Support: 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management.
• Hotspot Services: Passpoint (Hotspot 2.0) and a captive hotspot portal with a custom-branded landing page.
• Portal Authentication: Voucher, payment-based, and password authentication, plus external portal server support.
• Access & Segmentation: Private Pre-Shared Key (PPSK), RADIUS over TLS (RadSec), and dynamic RADIUS-assigned VLANs.
• Client Controls: Guest network isolation, client device isolation, WiFi speed limiting, and WiFi schedules.

Build flexible wireless coverage in demanding conditions with the Ubiquiti U7 Industrial. Its configurable antenna system, WiFi 7 performance, 2.5 GbE uplink, and extended operating temperature range provide a robust foundation for industrial and outdoor connectivity.
