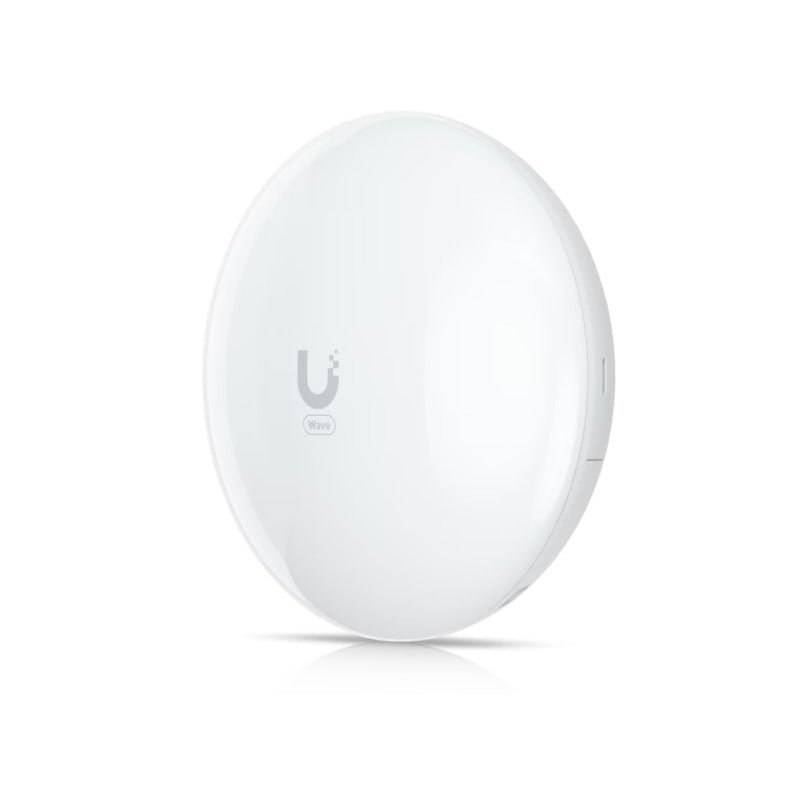

Ubiquiti Networks Wave Pico

Technical Specifications Mechanical Dimensions Ø152.1 x 55.8 mm (Ø6 x 2.2") Weight Without mount: 347 g (12.2 oz)With mount: 409 g (14.4 oz) Enclosure material UV stabilized polycarbonate Mount material...
Read More
$229.99
$229.99
Sous-total: $229.99
Please hurry! Only 20 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti - Ubiquiti Networks Wave Pico

Ubiquiti Networks Wave Pico

$229.99

Ubiquiti Networks Wave Pico

$229.99
Technical Specifications

Mechanical
Dimensions Ø152.1 x 55.8 mm (Ø6 x 2.2")
Weight Without mount: 347 g (12.2 oz)
With mount: 409 g (14.4 oz)
Enclosure material UV stabilized polycarbonate
Mount material UV stabilized polycarbonate
Pole mount diameter 20 to 53.1 mm (0.8 to 2.1") on pipe outer diameter
Wind loading 31.3 N at 200 km/h (7 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual-core ARM® Cortex®-A53 at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 10W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
Passive PoE 2-pairs (4, 5+; 7, 8 -) , for 44–54V DC only
Power supply 48V DC, 0.5A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Supported voltage range 44–54V DC
GPS No
Button Factory reset
LEDs Power, Ethernet, link
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtMP station, PtP
Ubiquiti specific features Wave AI, discovery protocol
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge/Router* mode
*Router is available in PtMP station mode only.
Application requirements UISP web: Version 2.4.61 and later
UISP mobile iOS™: Version 2.32.0 and later
UISP mobile Android™: Version 2.31.9 and later
System
Total throughput 2 Gbps (1 Gbps duplex)
Max. range Up to 1.3 km (Wave AP)
Up to 0.9 km (Wave AP Micro)
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 27.7 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 6°
Elevation: 3 dB 6°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5180 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 9 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 50°
Elevation: 3 dB 50°
Cross-pol isolation 15 dB
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet Flashing blue: Ethernet traffic detected
Links White: 5 GHz link
Blue: 60 GHz link
