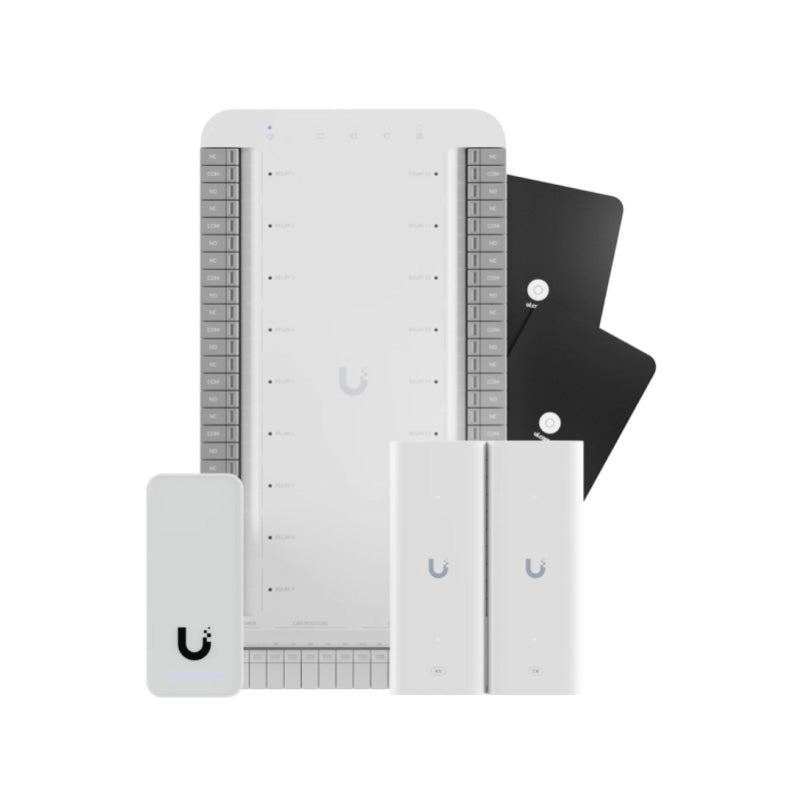

Secure and streamline elevator access with the Ubiquiti Elevator Starter Kit (UA-SK-Elevator), a comprehensive solution connecting in-elevator readers via PoE to authorize user floor selection. Supporting up to 18 floors with digital inputs for car status and emergency monitoring, this kit includes an Elevator Hub, G2 Reader, two 2-wire PoE extenders, and 10 Access Cards for immediate deployment.
Component/Specification | Details |
---|---|
UA-Hub-Elevator | |
Dimensions | 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3") |
Weight | 537 g (1.2 lb) |
Enclosure/Mounting Material | Polycarbonate |
Networking Interface | (4) 10/100/1000 Base-T |
Management Interface | (1) 10/100/1000 Base-T |
Power Method | PoE++ |
Max. Power Consumption | 7W (Without PoE output) |
PoE Input | (1) PoE++, 50V DC, 1.2A |
PoE Output | PoE passthrough, (4) PoE, 50V DC, total 42W |
ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
Digital Inputs | (6) Car position (Up/down/stop/full/door open/close); (1) Emergency |
Outputs | (18) Relays, Rating 30V DC/2A |
LEDs | System: White/Blue/Red; Output relays: White |
Buttons | (1) Factory-reset |
Operating Temperature | -10 to 40° C (14 to 104° F) |
Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
UACC-Extender-2Wire-Tx/Rx | |
Dimensions | 40 x 105 x 25 mm (1.6 x 4.1 x 1") |
Weight | PoE in: 77 g (2.7 oz); PoE out: 79 g (2.8 oz) |
Enclosure/Mounting Material | Polycarbonate |
Networking Interface | (1) 10/100 MbE; (1) Homeplug AV |
Management Interface | (1) 10/100 MbE |
Power Method | PoE++ |
Max. Power Consumption | 3W (Without PoE output) |
PoE Input | (1) PoE++, 50V DC, Max. 1.2A |
PoE Output | (1) PoE+, 48V DC, 0.72A |
ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
LED | White |
Operating Temperature | -10 to 40° C (14 to 104° F) |
Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
UA-G2 | |
Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
Weight | 82 g (2.9 oz) |
Enclosure Material | Polycarbonate, glass |
Mounting | In wall, gang box |
Weatherproofing | IP55 |
Networking Interface | (1) 10/100 MbE RJ45 port |
Connectivity | BLE 4.1 |
Power Method | PoE |
Supported Voltage Range | 48V DC |
Max. Power Consumption | 5W |
ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
Sensors | Proximity sensor |
Speaker | (1) 8 ohm, 0.7W |
LEDs | R/G/B/W |
Button | (1) Factory-reset |
NFC Frequency | 13.56 MHz |
NFC Read Range | < 30 mm |
NFC Standards | ISO 14443A, 14443B, 15693 |
NFC Technology | NFC Tag 1,2,3,4,5; MIFARE Classic, Plus, Ultralight, DESFire |
Operating Temperature | -30 to 45° C (-22 to 113° F) |
Operating Humidity | 5 to 90% noncondensing |
Certifications | CE, FCC, IC |
UA-Card | |
Dimensions | 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03") |
Weight | 5 g (0.18 oz) |
Format | ISO 7810 ID-1 |
NFC Frequency | 13.56 MHz |
NFC Technology | ISO/IEC 14443 Type A; MIFARE DESFire; UniFi Access Proprietary Security Protocol |
