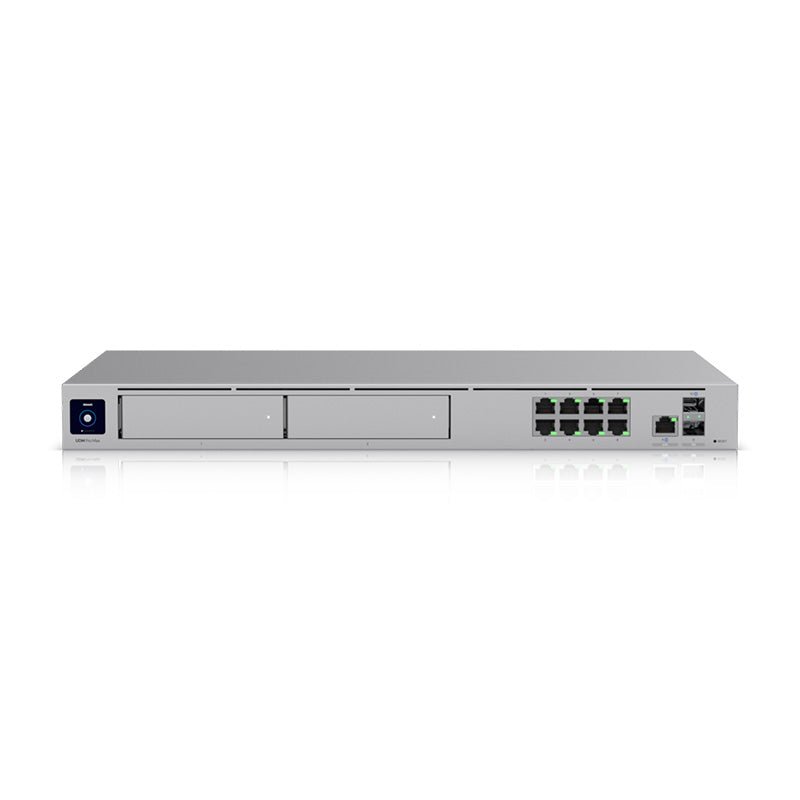

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites. Enhanced computing power and memory for 2x the...
Read More
$699.99
$699.99
Sous-total: $699.99
Please hurry! Only 3 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

$699.99

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

$699.99
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE

Includes full UniFi application suite for device management

5 Gbps routing with IDS/IPS

(1) 10G SFP+*, (8) GbE RJ45 LAN ports

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(2) 3.5" NVR HDD bays with RAID data protection

Built-in 128 GB SSD for NVR detection recordings

1.3" touchscreen

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 4.7 kg (10.4 lb)
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory 8 GB DDR4
On-board storage 32 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS throughput 5 Gbps*
*Measured with iPerf3.
Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input,12V DC, 4.6A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 60W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10° to 40° C (14° to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Green: link/activity
SFP+ Green: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
