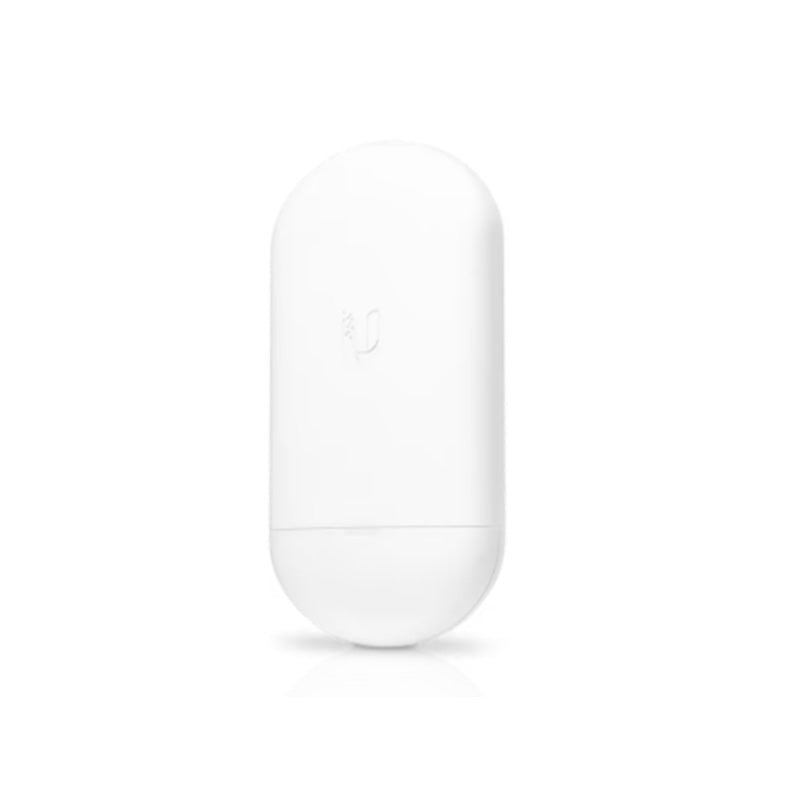

Optimize your wireless links with the Ubiquiti airMAX NanoStation 5AC Loco (Loco5AC), a compact, UISP-ready WiFi radio featuring the classic NanoStation design and an advanced airMAX AC chipset. With a 5 GHz band, 10+ km range, and over 450 Mbps throughput, this device includes a dedicated spectral analysis radio for enhanced performance in a durable, UV-stabilized package.
Specification | Details |
---|---|
Model | Loco5AC |
Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
Weight | 0.18 kg (6.35 oz) |
Enclosure Material | UV-stabilized plastic |
Mounting | Pole mounting kit (Included) |
Networking Interface | (1) GbE RJ45 port |
Power Method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
Power Supply | 24V, 0.3A Gigabit PoE supply* (*PoE adapter not included) |
Supported Voltage Range | 24V ±10% |
Max. Power Consumption | 8.5W |
LEDs | Power, Ethernet, (4) signal strength |
Operating Temperature | -40 to 70° C (-40 to 158° F) |
Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Gain | 13 dBi |
Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
Cross-pol Isolation | 20 dB min. |
Max. VSWR | 1.8:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual linear |
Operating Frequency (Worldwide) | 5150-5875 MHz |
Operating Frequency (USA) | U-NII-1: 5150-5250 MHz; U-NII-2A: 5250-5350 MHz; U-NII-2C: 5240-5725 MHz; U-NII-3: 5725-5850 MHz |
Management Radio (Worldwide) | 2412 - 2472 MHz |
Management Radio (US/CA) | 2412 - 2462 MHz |
